MixPac MFHX 08-18T F-System Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 400ml, 490ml)

Product Name

MixPac MFHX 08-18T F-System Mixing Nozzle for 10:1 & 4:1 ratio larger 2-part cartridges (200ml, 225ml, 250ml, 400ml, 490ml)

Brief Description

A disposable static mixing nozzle, the MixPac MFHX 08-18T F-System is engineered for the precise and homogeneous mixing of two-component adhesives, sealants, and other reactive materials. It features a Helix mixer design and an interlock connection, ensuring secure attachment to larger volume F-System cartridges (200ml, 225ml, 250ml, 400ml, 490ml) with specific 4:1 and 10:1 mix ratios.

Popular Applications & Uses

- Bonding structural components in aircraft and automotive assembly.- Sealing and bonding in construction, including concrete repair and home building.- Potting and protecting electronic components.- General industrial adhesive and sealant dispensing.- Repair and assembly in wind turbines.- Marine applications for sealing and bonding.- Cabinetry and woodworking projects.- DIY and home repair projects.

Industries that Commonly Use It

- Aerospace/Defense- Automotive Service/Repair- Cabinet & Woodworking- Construction/ Building Services- Concrete- Distributers & Resellers- Electrical Services or Products- Energy- Engineering Services- Fabrication- General Manufacturing- LED/Electronics- Marine- Metal Fabrication- Mold Making/ Casting- Plastic Fabrication- Prosumer- Transportation/ Specialty Vehicle

Special and Unique Features

- **F-System Compatibility:** Specifically designed for MixPac F-System 200ml, 225ml, 250ml, 400ml, and 490ml two-part cartridges.- **Helix Mixer Design:** Features a Helix mixer design with orange helical elements for efficient and uniform mixing.- **Interlock Mounting:** Simple interlock mounting method ensures a secure and leak-proof connection to cartridges, preventing cross-contamination.- **Disposable:** Designed for single-use, eliminating the need for cleaning and simplifying cleanup.- **Stepped Tip Outlet:** Allows for precise application and can be cut back to increase orifice size or used with Luer lock adapters for even finer control.- **Optimal Mixing for Specific Ratios:** Engineered for 4:1 and 10:1 mix ratios.- **High-Quality Construction:** Made from durable polypropylene (PP) for the housing and elements.

Key Properties

- **Mix Ratio Compatibility:** 4:1 and 10:1.- **Cartridge Volume Compatibility:** 200ml, 225ml, 250ml, 400ml, 490ml F-System cartridges.- **Inner Diameter:** 8.0 mm (0.315 inches).- **Number of Elements:** 18.- **Length:** 187 mm (7.362 inches).- **Waste Volume:** 7.28 ml.- **Element Material:** Polypropylene (PP).- **Housing Material:** Polypropylene (PP).- **Color:** Orange elements.

Surface Compatibility

Designed for use with two-part adhesives and sealants such as:- Epoxies- Polyurethanes (Urethanes)- Silicones- Acrylics (including Methacrylates/MMAs)- PolyestersThese adhesives are compatible with a wide range of substrates including metals, plastics, wood, glass, concrete, and composite materials.

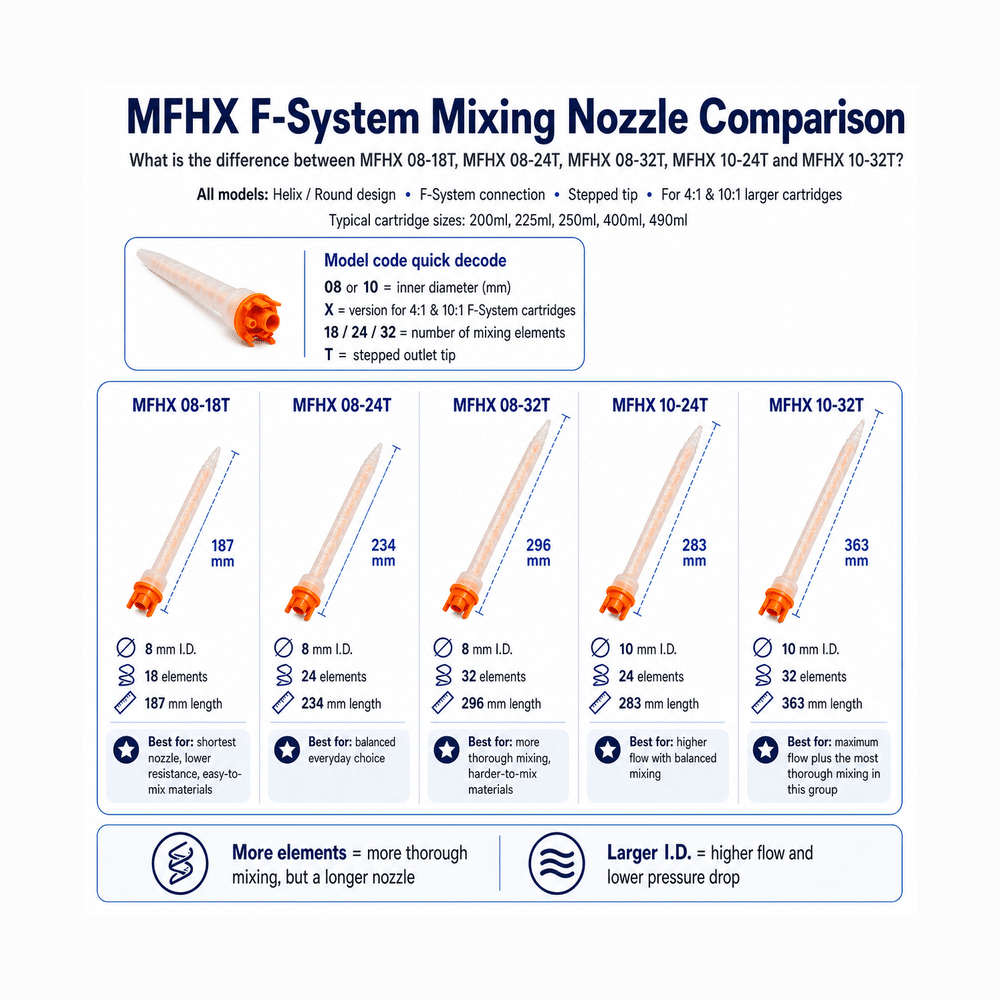

Known backups / known substitutes

- Other MixPac F-System nozzles with varying element counts or diameters (e.g., MFHX 08-24T, MFHX 08-32T, MFHX 10-18T).- MixPac MFH series nozzles, which are also F-System compatible but typically for 1:1 and 2:1 ratios.- MixPac Quadro™ (MFQ/MFQX) series mixers, offering enhanced mixing efficiency in a shorter length for various ratios.- Static mixing nozzles from other manufacturers, such as 3M, designed for two-component adhesives (cross-compatibility should be verified).

Comparison Note

The MixPac MFHX 08-18T is a Helix-style static mixer, characterized by its traditional spiral mixing elements. While highly effective, advanced designs like the MixPac Quadro™ mixers (e.g., MFQ series) are recognized for providing superior mixing efficiency, a shorter overall length, and a lower pressure drop due to their unique square elements. The MFHX 08-18T is specifically tailored for the F-System with 4:1 and 10:1 ratios, ensuring a precise and reliable mix for these particular two-part adhesive chemistries. Its stepped tip further enhances versatility in dispensing applications.
