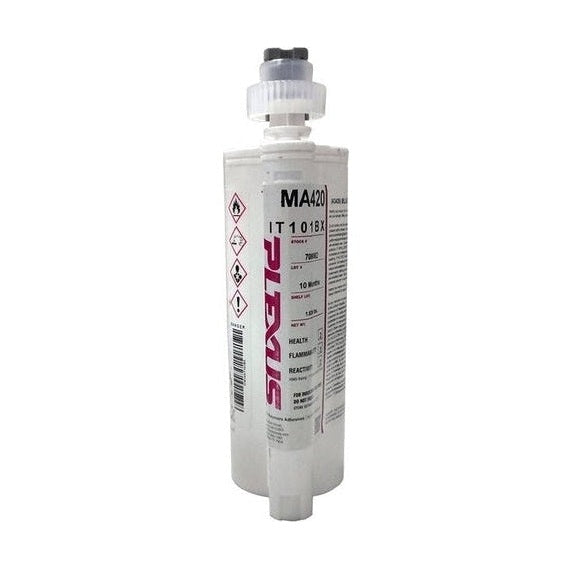

PLEXUS MA420 (aka AO420) - 490ml 10:1 Ratio Cartridge- Cream IT101X

In stock
SKU: PLXS_AO420_STRAW_IT101X_490ML_dup1
Regular price $184.00 CAD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA


Plexus MA420 (also known as AO420) is a two-part methacrylate adhesive designed for structural bonding of thermo plastic, metal and composite assemblies. Combined at a 10:1 ratio is a rapid curing system and is the standard choice for composite bonding applications in the transportation industry because it requires no surface preparation.

Plexus changed the name of this popular formula, and it is now called AO420.  But many customers know it as MA420

Key Features:

  • Short open time 4-6 minutes
  • Fast, consistant strength development at room temperature
  • Highly toughened formula for the toughest environments
  • Exceptional strength, elongation and fatigue resistance
  • Non-Sag thixotropic dispensing

Key Substrates:

  • Thermoplastics- ABS/ABS Blends, Acrylics, PBT, Polycarbonate, Rigid PVC, TPUs
  • Composites – DCPD, FRP Gelcoat, Phenolics, Epoxy based composites, RIM
  • Raw Metals with PC120- Aluminum, Stainless Steel, Raw Steel, etc.
  • Coated Metals- Powder Coated or E-coated metals


Color: Cream

Mix Ratio: 10:1

Shear Strength: 3,000-3,500 psi (20.7-26.2 MPa)

Adhesive A: 100,000-125,000 cP

Activator B: 35,000-80,000 cP

Working Time Min: 4 minutes

Working Time Max: 6 minutes

Fixture Time Min: 18 minutes

Fixture Time Max: 22 minutes

Tensile Strength Max: 3,000 psi (20.7 MPa)

Elongation Max: 50%
