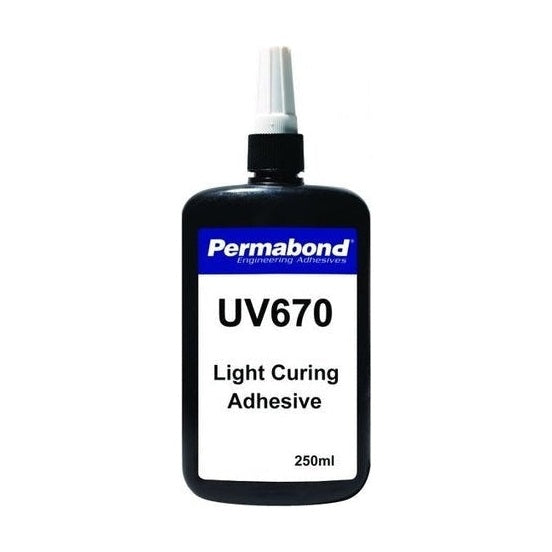

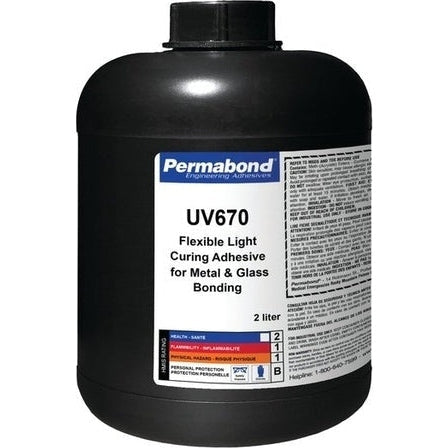

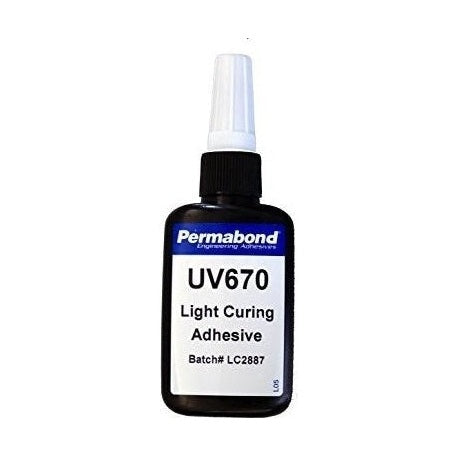

Permabond UV670 UV glue optimized for Metals and Metallized Plastics
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Need Accessories? Don't forget to grab them.
PERMABOND UV670 is a single part, fast curing, UV curable adhesive. The cured adhesive is tough, flexible and has excellent impact resistance. Permabond UV670 is well suited for bonding glass to metals and metalized plastics.
It is a medium viscosity, moderatly flowing UV glue
- Cure on demand
- Flexible, good impact resistance
- Fast curing with low-power lamps
- 100% solids, no solvents
- Excellent adhesion to metal and glass
Physical Properties of Uncured Adhesive
| Chemical Composition | Methacrylate ester |
| Viscosity @ 25°C |
20rpm: 2000-3000 mPa.s (cP) |
| Specific Gravity | 1.1 |
Performance Characteristics
|
UV Curing Wavelength |
365 - 400 nm |
|
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 7 secs |
|
Tensile Strength |
12 N/mm² (1700 psi) |
|
Shear Strength |
6-10 N/mm² (870 psi – 1450 psi) Glass to Steel: 900psi to 1000psi 6 to 7 N/mm²) |
|
Temperature Resistance |
212f (100C) 60% strength 302f (150C) 18% strength |
|
Appearance |
High Clarity, Colorless, Optically Clear, Transparent |
|
Elongation (ISO37) |
>80% |
|
Hardness (ISO868) |
50 to 60 Shore D |
