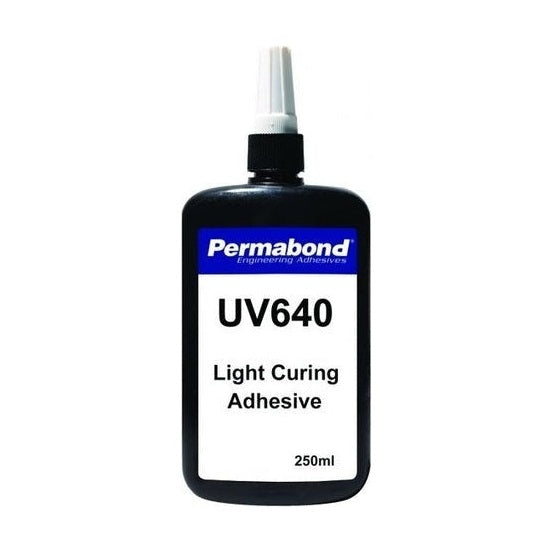

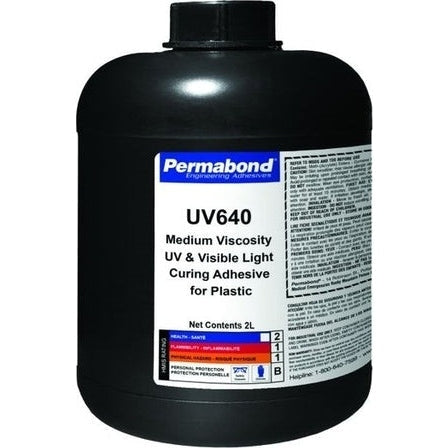

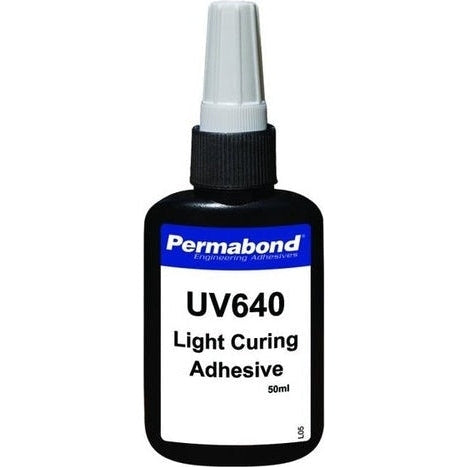

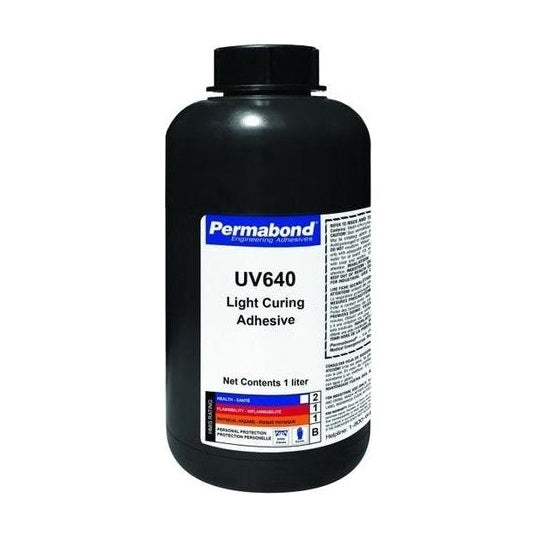

Permabond UV640 thicker viscosity general purpose impact resistant clear UV glue
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)PERMABOND UV640 is a single part, fast setting, and UV curable adhesive designed specifically for bonding plastics. This material has excellent adhesion to a variety of plastics including polycarbonate. Permabond UV640 has very high shear strength, elongation and impact resistance making it ideal for applications that require substrates with different coefficients of thermal expansion.
- Cure on demand
- High shear strength
- Fast curing with low-power lamps
- 100% solids, no solvents
- Excellent adhesion to plastics
Physical Properties of Uncured Adhesive
| Chemical Composition | Methacrylate ester |
| Viscosity @ 25°C |
20rpm: 3,000-5,000 mPa.s (cP) |
| Specific Gravity | 1.1 |
Performance Characteristics
|
UV Curing Wavelength |
365 - 420 nm |
|
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 10 secs |
|
Tensile Strength |
1900psi (13 N/mm^2) |
|
Shear Strength |
Polycarbonate: >9 N/mm² (>1300 psi) Glass to Steel: 900psi to 1000psi 6 to 7 N/mm²) |
|
Temperature Resistance |
212f (100C) 60% strength 302f (150C) 18% strength |
|
Appearance |
High Clarity, Colorless, Optically Clear, Transparent |
|
Elongation (ISO37) |
>110% |
|
Hardness (ISO868) |
55-75 Shore D |
