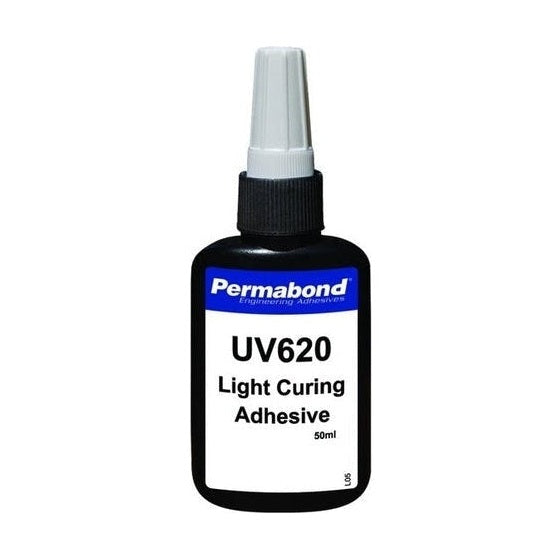

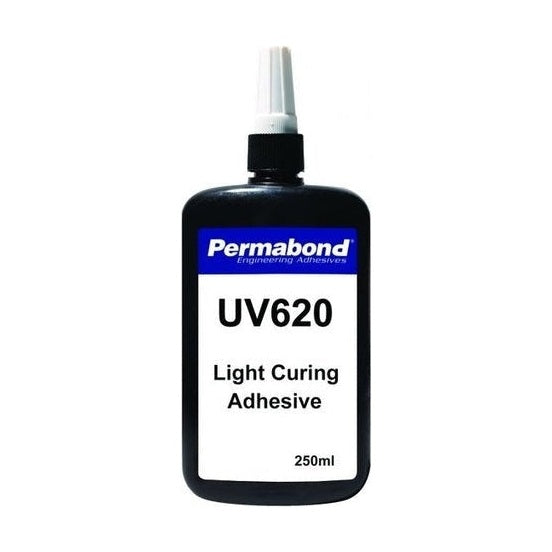

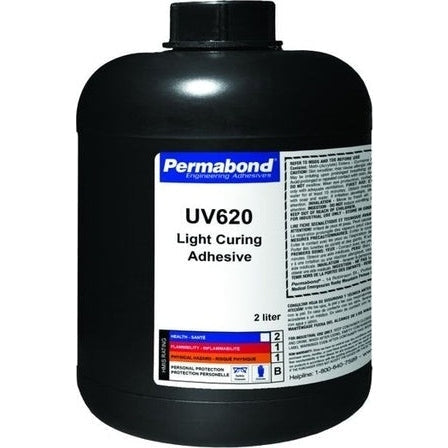

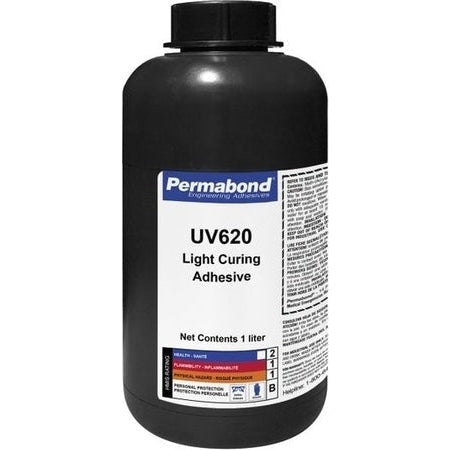

Permabond UV620 Medical Grade UV glue with High Optical Clarity, Very Clear, Transparent, thicker slow flow
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)PERMABOND UV620 is a single part, fast curing, UV curable adhesive. Its excellent optical clarity and resistance to yellowing make it ideal for bonding glass and crystal for a high quality finish. It is well suited for a variety of applications including glass furniture, decorative ornaments and other glass objects where high strength and appearance are required.
UV620 is also a Medical Device Rated formula
- Cure on demand
- Medical Device Grade formula
- Optically clear
- Resistant to yellowing
- Fast curing with low-power lamps
- 100% solids, no solvents
- Excellent adhesion to metal and glass
Performance Characteristics
|
Chemical composition |
Methacrylate ester |
|
UV Curing Wavelength |
365 - 400 nm |
|
UV Curing Time (by strength of light) |
Low power 4mW/cm² battery lamp: 5 secs |
|
Tensile Strength |
1300psi to 2300psi (9 to 16 N/mm^2) |
|
Shear Strength |
Glass to Steel: 7 days @ 23°C: 11N/mm² (1600 psi) |
|
Temperature Resistance |
212f (100C) 75% strength 302f (150C) 18% strength |
|
Appearance |
High Clarity, Colorless, Optically Clear, Transparent |
|
Viscosity@25°C |
20rpm: 2200-2900 mPa.s (cP) |
|
Elongation (ISO37) |
>80% |
|
Hardness (ISO868) |
65-75 Shore D |
