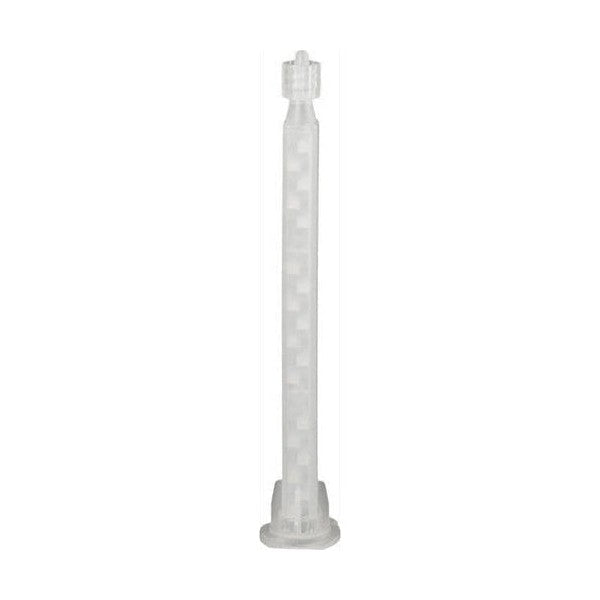

Nordson EFD 295 Series - 50ML Mixing Nozzle - High Efficiency Square-Quad 4-Inch 20-Element Luer-Lok Tip

In stock
SKU: NRD_295MX_50ML_20ELE_4IN_LUER_005PK
Which Multi-Pack Count?
Regular price $23.00 CAD
451 units available
451 units are available

Nordson EFD 295 Series - 50ML Mixing Nozzle - High Efficiency Square-Quad 4-Inch 20-Element Luer-Lok Tip

For all standard A-System 50ml 45ml, and 35ml cartridges (Square-Back, Bayonet Style)

And all standard ratios (1:1, 2:1, 4:1 and 10:1).

Nordson's Part Number: 295-620LL (7701836)

The patented Nordson EFD Series 295 Turbo Mixer is a disposable static mixer which ensures superior mixing performance and allows the operator to be closer to the work piece. Designed for 50mL two-component cartridge, the Turbo (square) geometry consists of a series of alternating left- and right-hand elements with intermittent flow inverters. The flow inverters effectively channel the fluids from the walls into the center of the mixer and from the center to the walls.

Use these mixers with: Epoxy, Silicone, Urethane, Foam Urethane, Acrylic, Polyesters

Works perfectly with the following Brands of 50ml and related size (A-System) adhesive cartridges: Loctite EA , 3M Scotch Weld, Devcon, Plexus, Huntsman, Araldite, Lord, MG Chemicals, Permabond, Masterbond, and all other brands that use the following 50ml 45ml, and 35ml, and related cartridge types. Works with all standard A-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly.

Specifications

  • About 2/3 of the length of comparative spiral mixers
  • Consistent high-quality mixing
  • Cost Savings due to reduced adhesive waste
  • Improved service life compared to competitive square mixers
  • Bayonet detail fits on standard 50mL cartridges
  • Element Material: Polypropylene
  • Housing Material: Polypropylene
