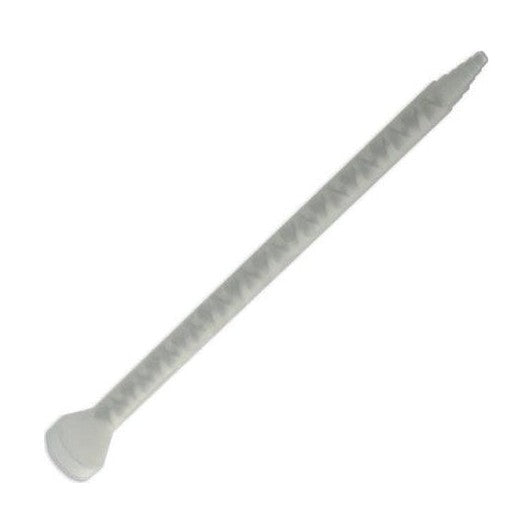

MixPac MCH 06-32T (9.2-in 32-Element) Mixing Nozzle for Thin and Polyurethane PUR Adhesives-Round Helix Bell Style - 1:1 & 2:1 ratio 200ml, 400ml, 600ml, 1500ml 2-Part cartridges

In stock
SKU: MIXPAC_MIXER MCH 06-32T 102419_001
Which Multi-Pack Count?
Regular price $3.00 CAD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA

MixPac MCH 06-32T Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml and 1500ml universal Bell-Style mixing nozzles (9.2-inch 36-element Mixing Nozzles) for all standard C-System 200ml, 400ml, 600ml and 1500ml 2-Part epoxy and adhesive cartridges.

Specifications:

  • 6mm inner diameter helix, round nozzle style
  • 9.2-inch nozzle length
  • 32-element count 32 mixing cycles for the material
  • Bell Style inlet fitting
  • For all Thin and Low-Viscosity materials 10,000 cP or lower
  • Recommended for Low Viscosity Polyurethanes, Urethanes, Epoxy, Silicone, Urethane, Acrylic
Specification Value Specification Value
Product MCH 06-32T Element Color: White
Description Mixer, 6mm x 32 ELE., 1:1/2:1 Element Material PP
Old Product Number MC 06-32 Housing Type Cylindrical
# of Elements: 32 Housing Material PP
ID* mm 6.0 Tip Style: Stepped Tip
ID* inch 0.24 Attach to Cartridge Retaining Nut
Length mm 234
Length inch 9.21

* ID means inner diameter

Mixpac nozzle MCH 06-32T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.

Typical applications for dispensing adhesive with Sulzer static mixer MCH 06-32T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.

Works perfectly with all major branded adhesives that use the larger (C-System) adhesive cartridges, 200ml, 400ml, 600ml, 1500ml, and related cartridge types. Works with all standard C-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly

The MedMix (Sulzer) MCH 06-32T Mixing Nozzle-Round Helix Bell Style are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.

This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.
