Product Name

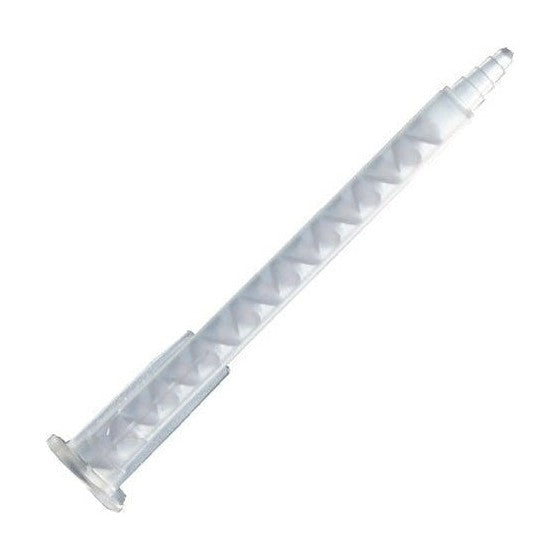

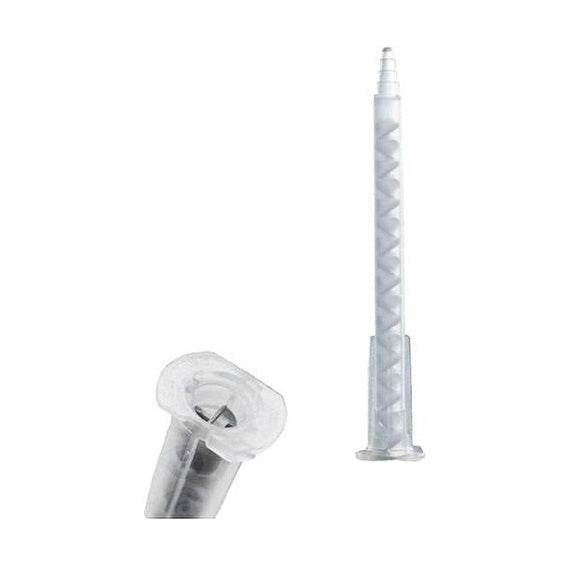

MixPac MAH-05-17T Medium Mixing Nozzle for 50ml Cartridges - 4-inch 17-element Bayonet Static Mixers
Brief Description
This is a high-performance static mixer nozzle engineered for dual-component cartridges, ensuring thorough and consistent mixing of two-part adhesives, sealants, and resins before application. It features a bayonet twist-lock inlet and 17 internal helical mixing elements, making it ideal for demanding industrial applications requiring accurate two-part dispensing.
Popular Applications & Uses
- Mixing and dispensing two-part epoxies, polyurethanes, silicones, acrylics, methacrylates, sealants, and gels.- Structural bonding applications.- Potting and encapsulating resins for electronics.- Seam sealing in automotive and industrial applications.- Fiberglass and composite manufacturing.- Concrete repair.- Bonding components like panels, plastics, and glass in vehicle assembly.- Circuit assembly with conductive adhesives.- Wind turbine assembly and repair.- Home building and general construction.
Industries that Commonly Use It
- Aerospace/Defense- Automotive Service/Repair- Chemical Industry- Construction/ Building Services- Energy (e.g., wind turbine assembly)- Fabrication (e.g., composite manufacturing, plastic fabrication)- General Manufacturing- LED/Electronics- Medical Device/ Prosthetics- Metal Fabrication- Plastic Fabrication- Prosumer (for advanced DIY and home repair)- Transportation/ Specialty Vehicle
Special and Unique Features
- Helical static mixing with 17 internal white mix elements for superior blend results.- Bayonet twist-lock inlet for quick, secure cartridge attachment.- Stepped outlet that can be trimmed to size for customized flow rates and adaptable flow control.- Constructed from high-grade polypropylene, ensuring durability and chemical resistance.- Industrial grade safe and 100% silicone-free.- Supplied in labeled packs with full batch traceability for inventory control and compliance.- Compatible with 50ml, 75ml, and 100ml A-System cartridges, specifically for 1:1 or 2:1 mix ratios.- The mixer's first element automatically aligns with the cartridge's dividing wall, preventing cross-contamination.
Key Properties
- Inner Diameter: 5.4mm.- Outer Diameter: 8mm.- Nozzle Length: 104mm (4 inches).- Number of Mix Elements: 17.- Retained Volume: 1.7ml.- Maximum Pressure: 100 PSI.- Material: Polypropylene body and elements.- Color: Natural outer, white elements.- Mix Ratios: 1:1 or 2:1.- Connection Type: Bayonet.
Surface Compatibility
The nozzle itself does not directly interact with the final surface. However, the adhesives and sealants dispensed through it are compatible with a wide range of materials, including:- Metals- Plastics- Glass- Concrete- Composites- Wood
Known backups / known substitutes
- Other MixPac MAH series nozzles with varying element counts or lengths (e.g., MAH 05-21T, MAH 06-17T).- MixPac MAQ series (QUADRO square mixers) for different mixing characteristics.- MixPac MAHX series (e.g., MAHX-05-17T) for higher mix ratios (4:1 and 10:1), identifiable by orange elements.- Static mixing nozzles from other brands compatible with A-System 50ml cartridges, such as those used with Loctite Hysol, 3M Scotch Weld, Devcon Dev-Packs & Mark5, and Huntsman Araldite 2000+ Gorilla Epoxy.- Nozzles with different tip terminations (e.g., luer slip, open, specialty ends) for specific application requirements.
Comparison Note
The MixPac MAH-05-17T is a high-performance helical static mixer, widely recognized as an industry standard for dispensing common 1:1 and 2:1 ratio two-part adhesives from 50ml (and some 75ml/100ml) A-System cartridges. Its 17 elements provide an optimal balance of mixing efficiency and minimal material waste. For applications requiring higher mix ratios (e.g., 4:1, 10:1), the MixPac MAHX series with orange elements is the appropriate alternative. Users may also consider other element counts, diameters, or Quadro (square) mixer designs for different flow characteristics or specialized dispensing needs. The stepped outlet offers practical versatility for controlling flow rates.
