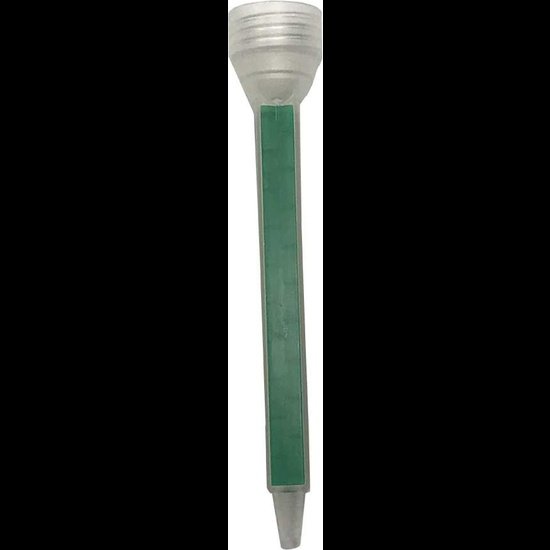

MedMix (Sulzer) MGQ-08-24T - Quadro Square 24-element Integrated-Nut Low-Waste Mixing Nozzle - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges

In stock
SKU: SULZER_MIXER MGQ 08-24T 300461_001
Which Multi-Pack Count?
Regular price $3.00 CAD
1395 units available
1395 units are available

MedMix (Sulzer) MGQ-08-24T - Quadro Square 24-element Low-Waste Bell-Style - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges. Universal mixing nozzles / tips (5-inch 24-element Mixing Nozzles) for all standard C-System (Bell-Style) 2-Part epoxy and adhesive cartridges.


  • 8mm inner diameter
  • 7-inch nozzle length
  • 24-element count (24 mixing cycles for the material)
  • Square Quadro style nozzle tube, for less-waste and more efficient mixing
  • Integratee Nut style inlet fitting, where u just screw the nozzle on.
  • For Medium and Thicker viscosities, 10,000 cP or higher
  • Recommended for Epoxy, Silicone, Urethane, Acrylic, Polyesters
  • Not recommended for Urethanes and Polyturethanes

Works perfectly with all major branded adhesives that use the Bell-Style (C-System) adhesive cartridges, including C-system cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly

MedMix (Sulzer) MGQ-08-24T Square Quadro Mixing Nozzles are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.

The Square Quadro design (also known as 'turbo') allows for maximum mixing in a smaller, shorter footprint. This allows users to get closer to the materials they are bonding and also leaves less wasted material in the mixer.
This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.

Use these mixers with: Epoxy, Silicone, Urethane, Foam Urethane, Acrylic, Polyesters
