Product Name
MedMix MCQ-07-24T - Quadro Square 24-element Low-Waste Bell-Style - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges
Brief Description
The MedMix MCQ-07-24T is a universal, disposable static mixer nozzle engineered for the efficient and homogeneous mixing and dispensing of two-component (2K) adhesives, sealants, and potting compounds. It is specifically designed for use with standard C-System bell-style 2-part cartridges, ensuring a consistent and thorough blend of Part A and Part B materials before application.
Popular Applications & Uses
This static mixer nozzle is widely used for dispensing and mixing various two-part materials, including epoxies, polyurethanes, silicones, acrylics, and methacrylates. Its applications span bonding, sealing, potting, and general assembly tasks where precise and consistent mixing of bi-component materials is critical.
Industries that Commonly Use It
The MedMix MCQ-07-24T finds common use across a diverse range of industrial sectors, including Aerospace/Defense (e.g., aircraft assembly), Automotive Service/Repair, Construction/Building Services (e.g., home building, concrete repair), Electrical Services or Products (e.g., electronics, communications), Energy (e.g., wind turbine assembly and repair), General Manufacturing, Medical Device/Prosthetics, Metal Fabrication, Mold Making/Casting, Plastic Fabrication, and Transportation/Specialty Vehicle.
Special and Unique Features
- Quadro Square Design: Features a 'Quadro Square' (also known as 'turbo') internal geometry, which provides superior mixing performance in a shorter, more compact footprint. This design minimizes material waste and allows users to get closer to the bonding surface.
- Low-Waste Volume: Engineered for compact mixing with a low internal volume, contributing to less material waste.
- 24 Mixing Elements: Contains 24 precisely designed mixing elements that ensure thorough and homogeneous blending of two-part materials.
- Bell-Style Inlet: Equipped with a bell-style inlet fitting, ensuring universal compatibility with standard C-System 2-part epoxy and adhesive cartridges.
- Stepped Tip Outlet: The nozzle features a stepped tip that can be cut at different intervals to control the bead size and adjust the amount of adhesive being dispensed, allowing for precise application.
- Disposable Design: Designed for single-use, offering easy cleanup and eliminating the need to clean mixing and stirring tools.
- Cartridge Cap Functionality: Can double as a storage cap for the cartridge once application is complete, preventing material hardening in the cartridge.
Key Properties
- Inner Diameter: 7mm (0.295 inches)
- Length: 130mm (5.118 inches)
- Number of Elements: 24
- Element Color: Green
- Material: High-grade polypropylene for both housing and elements.
- Mix Ratios Supported: Primarily 1:1 and 2:1, also compatible with 4:1 ratios for 200ml cartridges.

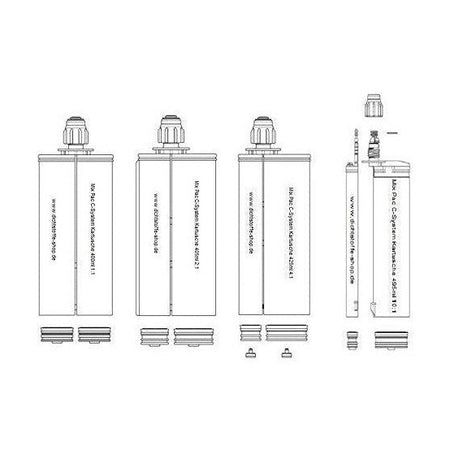

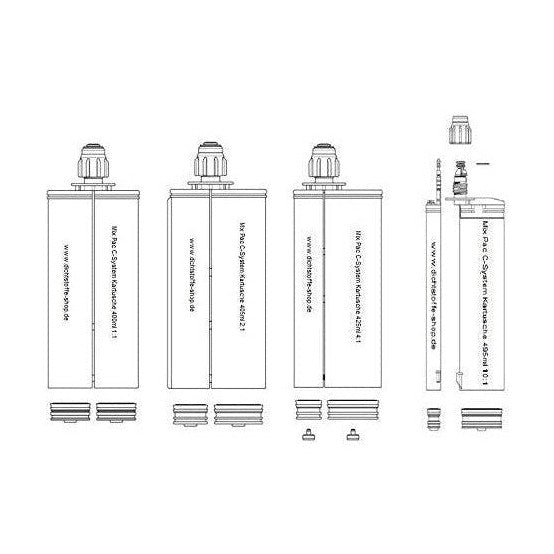

- Cartridge Compatibility: Designed for 200ml, 400ml, 600ml, and 1500ml C-System 2-part cartridges.
- Recommended Viscosity: Suitable for medium and thin viscosities, typically 80,000 cP or less, but can also dispense high-viscosity materials.
- Silicone-Free: Industrial grade and silicone-free construction.
Surface Compatibility
As a mixing nozzle, the MedMix MCQ-07-24T itself does not have direct surface compatibility. Instead, it facilitates the mixing of two-part chemical systems (adhesives, sealants, potting compounds) that are then applied to various surfaces. The compatibility with specific surfaces (e.g., metals, plastics, composites, concrete, wood) depends entirely on the chemical properties of the adhesive or sealant being dispensed through the nozzle.
Known backups / known substitutes
- MedMix (formerly Sulzer Mixpac) Quadro Mixers: Other models within the MedMix Quadro series, such as the MCQ 08-24T or MFQ 07-24T (designed for F-series cartridges).
- Other Static Mixing Nozzles: Equivalent static mixing nozzles from other manufacturers with similar specifications, such as Nordson EFD TAH series.
- Generic Alternatives: Various generic or off-brand static mixer nozzles designed for 2-part cartridges with bell-style connections.
Comparison Note
The MedMix MCQ-07-24T distinguishes itself with its advanced Quadro Square design, which is specifically engineered to deliver superior mixing performance and significantly reduce material waste compared to traditional helical static mixers. Its bell-style inlet ensures broad compatibility with a wide range of standard C-System cartridges, making it a highly versatile and efficient choice for industrial and professional applications that demand precise and consistent two-component material dispensing.
