MixPac 200ml (6.7oz) Empty 2:1 Ratio 2-Part C-System Cartridge & Pistons (AC 200-02-10-01 (112699))

In stock
SKU: MIXPAC_20021_CRTG_AC 200-02-10-01
Cartridges, Starter Kits or Accessories
Pack Counts
Regular price $5.00 CAD
1205 units available
1205 units are available

2-Part (dual-component) 2:1 ratio 200ml empty Adhesive Cartridge, with included Resealable Cap and Sealing Pistons.

MedMix MixPac (Sulzer) Cartridge Part Number: AC 200-02-10-01 (#112699)

Available in 2 kit packages, plus Accessories:

  • Empty Cartridges and Pistons (If u do not need the related dispensing equipment)
  • Starter Kit with Dispensing dispenser, configured with an industry-standard 1:1 & 2:1 Ratio Dripless DC200L dispensing applicator.

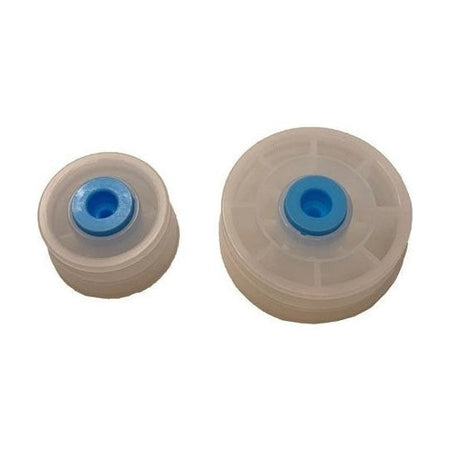

  • Useful Accessories: A variety of useful and possibly necessary accessories, like piston insertion tools, re-use piston blow-out adapter, more pistons, low-viscosity flow-restrictors, etc.

About the Cartridges:

These cartridges include matching pistons and a re-sealable tip (or cap). They are ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free. The cartridge design/fit using the "C-System", and are manufactured by Sulzer MixPac, the industry leader in 2-part fluid packaging and dispensing.

These 2-Part Cartridges are industrial grade, silicone free, and rated up to 100psi sustained pressure. The Cartridge design/fit using the industrial standard "C-System" template. The 2-Part design keeps the two adhesive parts separate, until a separate mixing Nozzle is attached, where the two parts are pushed or extruded into the mixing Nozzle and bonding or curing begins.

The 2-Part design keeps the two adhesive parts separate, until a separate mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.

Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.

These cartridges are perfect for storing and applying bulk adhesives that use a 2:1 mix ratio, where precise metering and mixing is needed.

Total Cartridge Length (bottom to cap tip

7.5 inches

Barrel length

5 13/16 inches

Total cartridge width (across both barrels)

3 inches

Large Barrel Inner Diameter

1.53 inches

Small Barrel Inner Diameter

1.07 inches

Mixer Style

Bell-Style or Integrated-Nut Style, and either Helix or Quadro/Square styles

Total Cartridge Volume (both barrels combined)

200ml , or 6.7oz

NOTE: Additional accessories needed. Consider the pre-configured starter kits, or view the accessories scroll-bar below to ensure you get what you need. For example, with these empty cartridges you will also need mixing nozzles and a dispensing product to push/extrude/dispense the adhesive out. We recommend also getting one of our 200ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits. The mixing nozzles needed are of the "Bell" or “Integrated Nut” design, which easily twist on and off the cartridge end. These nozzles tend to be difficult to clean and store after their first use, and therefore generally considered to be single-use accessories. These Cartridges use standard static mixer nozzles. Cartridges immediately available in mix ratio's 2:1 or 2:1. Mix ratios of 4:1 and 10:1 can be ordered but on a special-order basis due to infrequent market demand. Products are industrial grade safe to 100 psi and are certified silicone free. Dispensers are available for all size cartridges in manual of pneumatic. The “C” System is comprised of a small lightweight, hand-held manual dispenser which dispenses 2-component adhesives through “C” System cartridges and mixers. Cartridge systems are available in a variety of volumetric ratios. Please be sure to select the correct ratio for your two-component system.
