Maven Spray Nozzle Kit (nozzle + sprayyer) for two-part cartridges (24 element, 6.3mm and 9.3mm diameters)

In stock
SKU: MV_SPRAY_KIT_6.3MM_7700846+7701282
NOZZLE SIZE
Regular price $3.00 CAD
1688 units available
1688 units are available

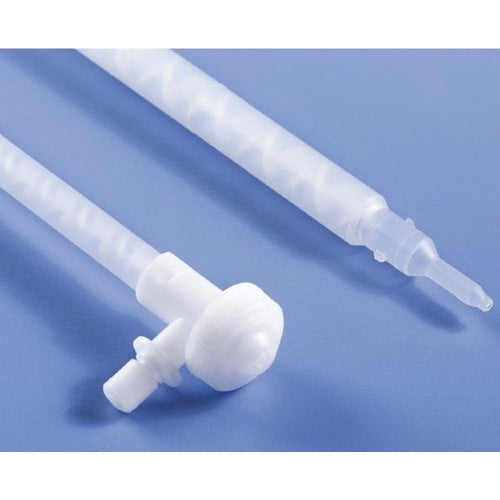

Maven MV_160AA Disposable Spray Nozzle + Mixer Kits for Quick Spray Systems

The Maven MV_160AA spray nozzle is a direct substitute for the Nordson EFD’s Series 160AA Quick Spray nozzle.

Due to supply issues we have sourced a back-up supplier for this important part.

The Maven MV_160AA is a low-pressure air-assisted spray system for two-component coatings.

This disposable static mixer is designed for use with conventional meter/mix equipment or with Nordson EFD’s two-component cartridge system. The reactive coating is mixed within the disposable static mixer. At the mixer outlet, air is introduced which atomizes the liquid stream. The degree of atomization can be adjusted by regulating the airflow rate. Since the reactive coating is contained completely within the mixer, cleanup is minimal.

Kit Includes: One Mixing Nozzle and One Spray Nozzle Cap

Round Spray Pattern


■ The round air cap produces a full cone pattern, which is
completely filled with spray drops. It is used on irregular
surfaces, such as truck bed interiors.

Maven Part Number Substitute for Nordson Part Number
Mixing
Elements
Element
Diameter
(inch/mm)

Pressure Limitation

(PSI@75°F/
Bar@23°C)

Substitute for Nordson Air Cap Assembly
7700846 (160-624AA-4) 24 0.238/6.30 360/25 7701282 (171-AN-200)
7700920 (160-824AA-2) 24 0.366/9.30 300/21 7701282 (171-AN-200)

*Important: For any bell housing inlet mixer, order retaining nut: #7702595 for 0.189-0366" ID; or #7702598 for 0.5'' ID
Note: The Series 160AA Quick Spray System also requires these parts:
• Air Cap Assembly (#7701282)
• Quick Connect Fitting (#7701286)
