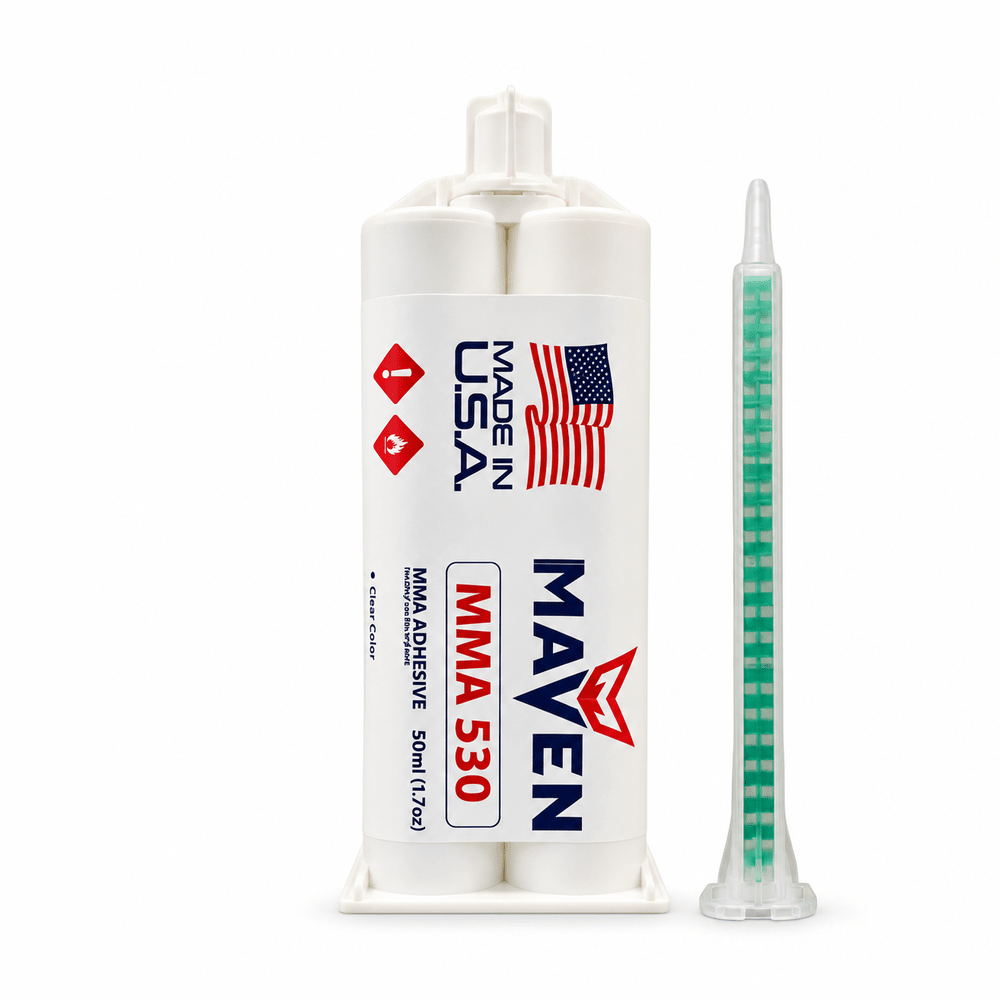

Maven MMA 530 - Medium Set 35 minutes MMA Marine-Optimized Adhesive - Thick/High Viscosity Gray 1:1 ratio

Maven MMA 530 is a two-part methacrylate adhesive suitable for structural bonding of various metals, thermoplastics and composites. It has a unique combination of excellent fatigue endurance, shock resistance, toughness, chemical and environmental resistance that makes it ideal for marine and composite assemblies where longer set time is helpful.

MMA 530 is a backup formula for the Plexus MA530.

Its environmental and chemical resistance also works well in marine and humid environments. This product is often used for larger assemblies and for bigger gaps, where a longer set-time is important. This 1:1-ratio formula has an open time of 35 minutes and handling strength can be achieved in 90 to 120 minutes. It gives excellent bond strength along with good toughness and high impact strength. Highly recommended in marine industries and other composite assemblies.

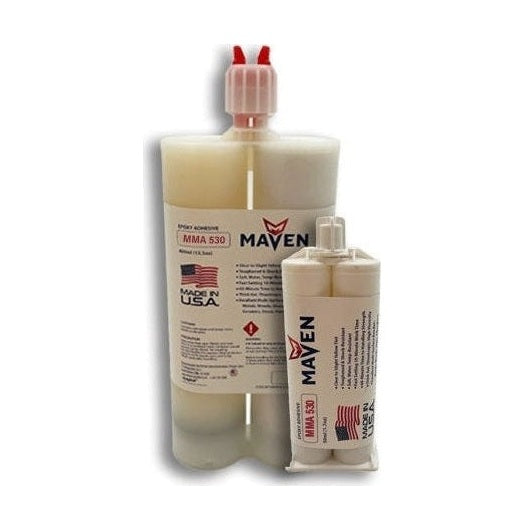

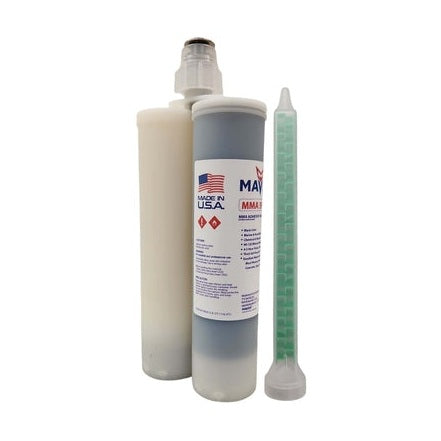

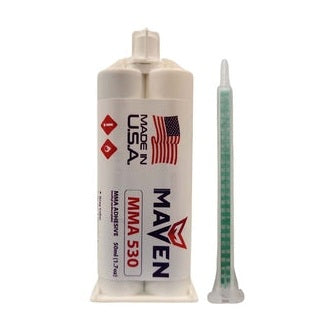

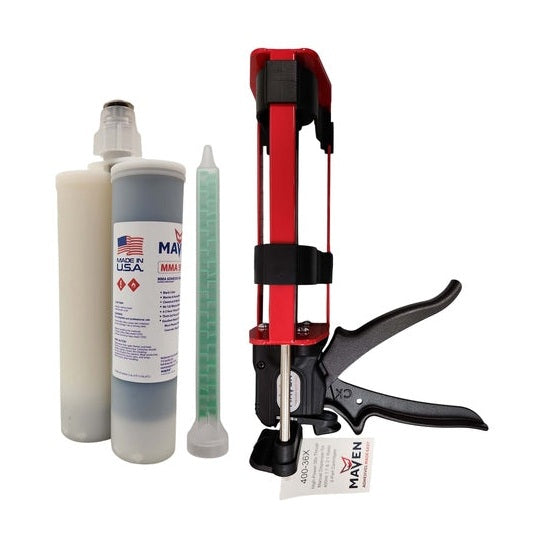

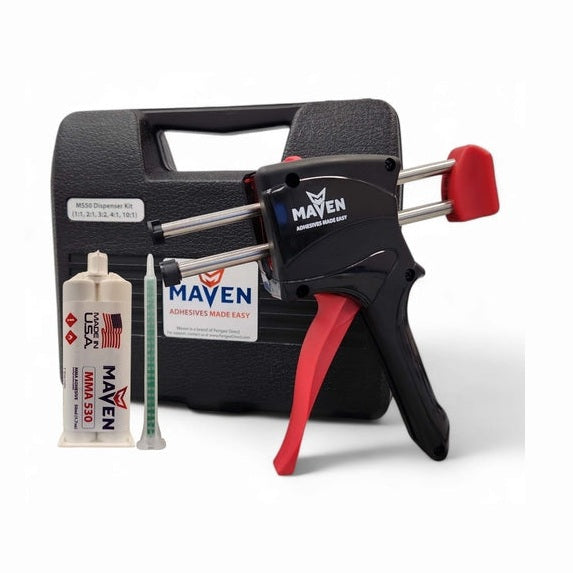

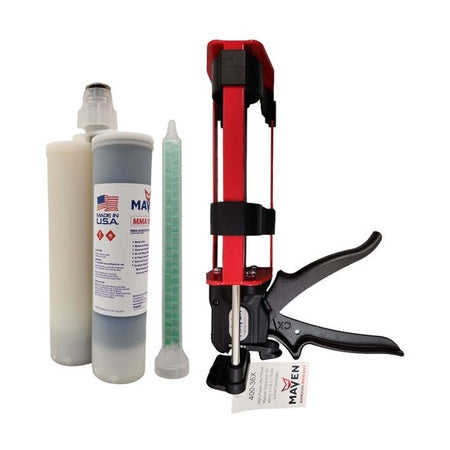

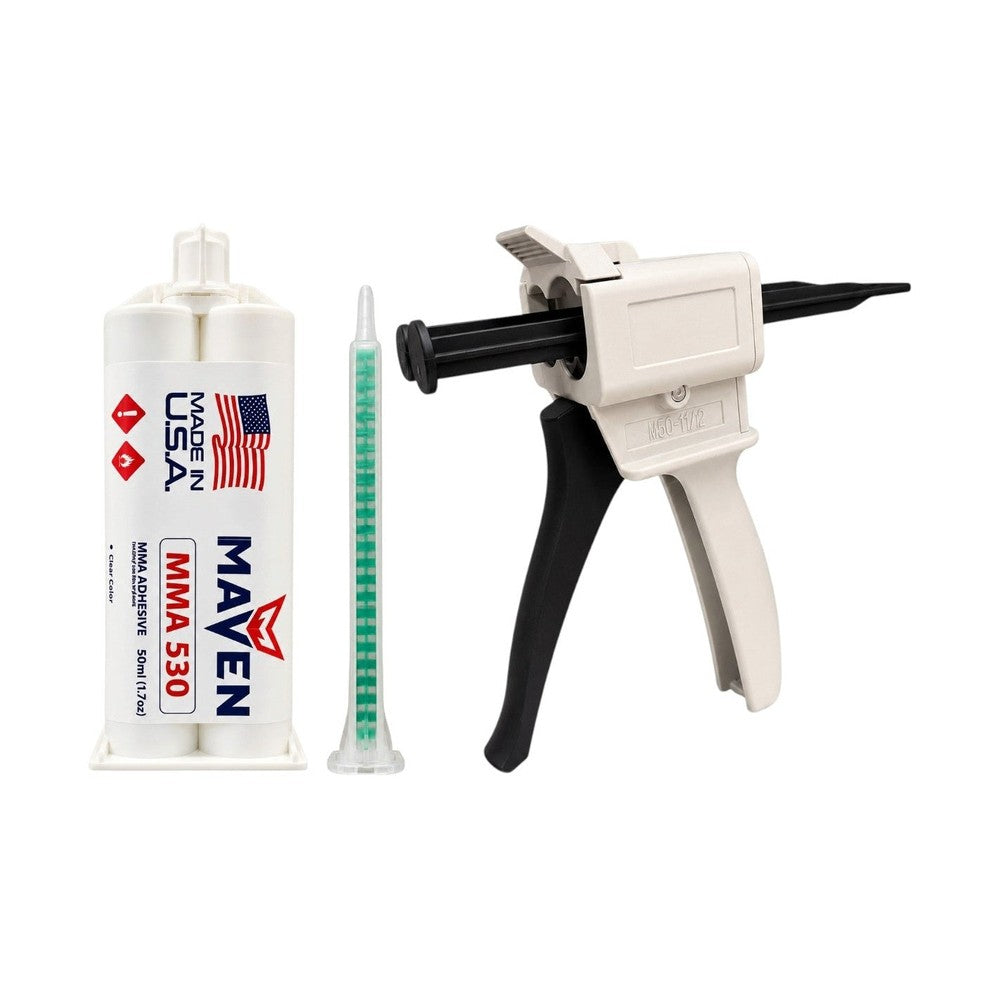

Please Note: These cartridges are designed to work best with a 50ml or 400ml cartridge Dispenser, respectively. We advise you use a 50ml or 400ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

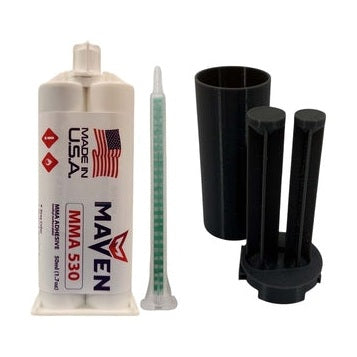

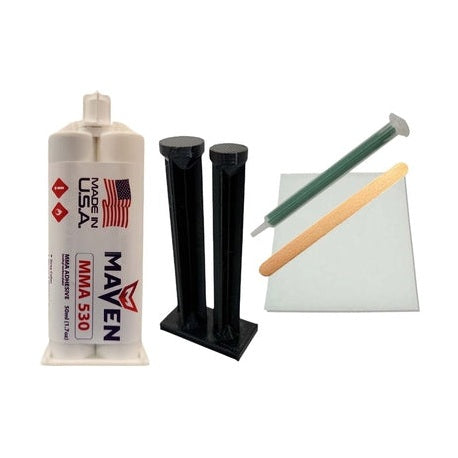

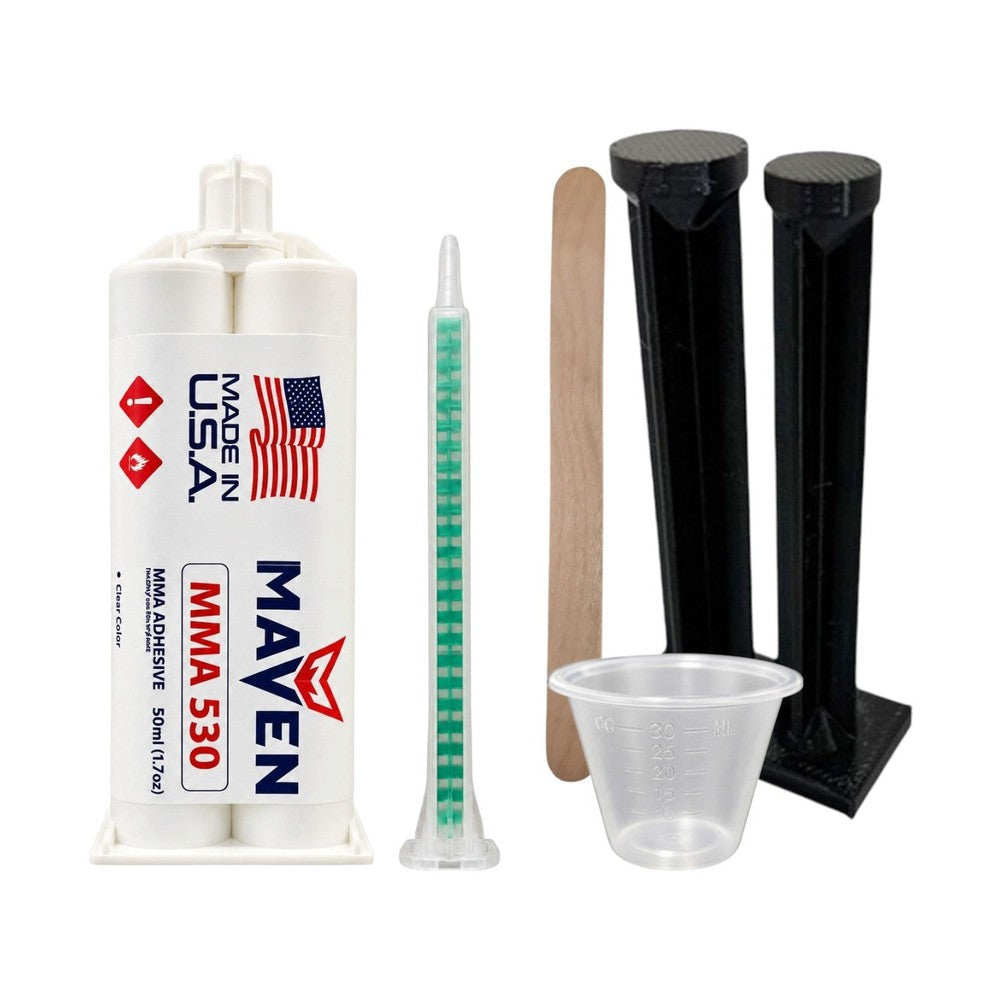

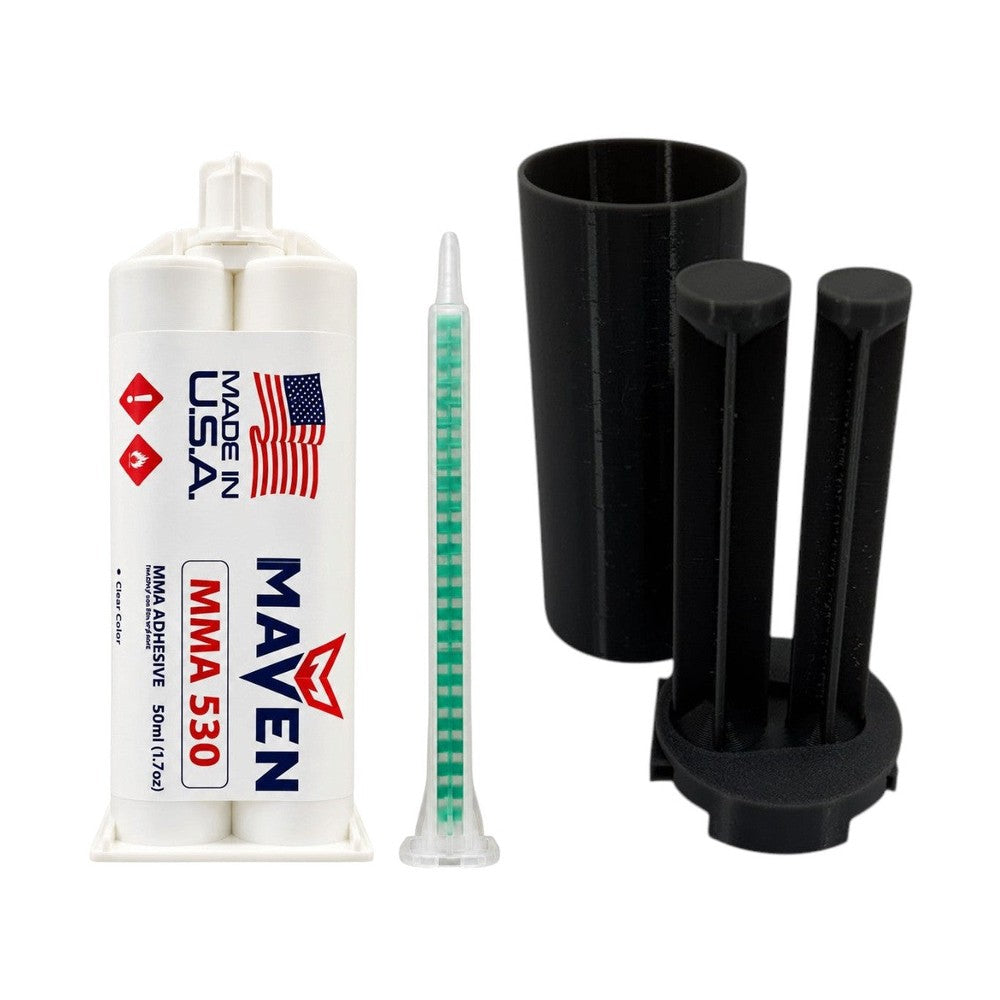

If you prefer not to use a Dispenser, we have some 50ml kits that include hand tools or caulking dispenser adapters, as pictured, that you can use for small jobs. But the 400ml cartridges really need to use a 400ml Dispenser, they're just too big to effectively use without the dispenser.

Key Features

• 30-40 Min Working Time (30 gm mass)
• Medium-Set MMA for Craftsman and Industrial uses
• Recommended for marine and other composite materials
• Excellent resistance to most chemicals, including hydrocarbons, gasolines, oils, water, salt/briny water
• High impact strength
• Structural bonding of a variety of materials
• Gap filling 0.75mm-15mm (.03in-.60in)

Chemical Resistance

Excellent resistant to hydrocarbons, oils, gasoline, kerosene, diesel, acids and bases, salt solutions, briny water, salt water, fresh water

Susceptible to polar solvents like methanol, ethanol, acetone

Recommended for
ABS, Acrylics, FRP, Gelcoats, PVC, Polyesters, DCPD, Stainless Steel, Aluminum, Styrenes, Urethanes, Polyurethanes, Vinyl Esters, Composites

Cured Product Characteristics

Color: Gray
Work life (30 gm mass): 30-35 minutes
Handling strength: 90-120 minutes
Full cure: 24 hours
Mixing Ratio: 1:1

Operating temp: -50F to 250F (-45C to 121C)

Properties of uncured material (Resin)
Specific Gravity: 1.0
Viscosity@25°C, cP: 120,000 - 180,000
Color Translucent Clear

Properties of uncured material (Activator)
Specific Gravity: 0.96
Viscosity@25°C, cP: 150,000 - 200,000
Color: Gray

Mechanical Properties
Tensile Strength: 2500-3500 psi
Lap Shear Strength, psi: 2000-2500
Modulus, psi: 70,000-120,000
Chemical resistance: Excellent resistant to hydrocarbons, acids and bases; but susceptible to polar solvents.

Directions of applications
Wipe off and degrease the surface to be bonded. Use eye protection and gloves to avoid skin contact. Dispense a desirable amount of adhesive using a dispensing dispenser. The nozzle sizes can be selected according to the desired bond thickness. Join the substrates with the specified work-life of this material and allow it to cure at room temperature. Do not disturb the parts during the curing process. Excess adhesive can be wiped off. (For optimum strength, surface preparation for the metals like sandblast, etching is suggested).

Safety and handling
Wear eye protection and gloves. Harmful if swallowed. Keep it away from heat, flames. Keep out of reach of children. Once used keep the containers closed.

Storage and shelf life
Store this product in a tightly closed container in a cool and well-ventilated area. Product should not be frozen. Keep it away from any source of heat. Store the material in between 51℉ to 75℉. Continuous exposure above 75℃ will reduce the shelf life.
