Maven Epoxy EA 530 - Medium Set 30-Min Epoxy-Medium Viscosity Clear-1:1 ratio
maven Epoxy EA530 is a 2-part Medium Viscosity epoxy adhesive with a medium set time of 30 minutes. When mixed in equal volumes of resin and hardener, it reacts to give a rigid and tough bond. This product is clear with a mild yellow tint, non shrinking and gives excellent adhesion. EA 530 is recommended to bond various materials like metals, glass, wood, FRP, concrete, stone and ceramics. It has a set time (working life) of 30 minutes, and handling strength can be achieved in about 2 hours. Give excellent bond strength on various substrates.

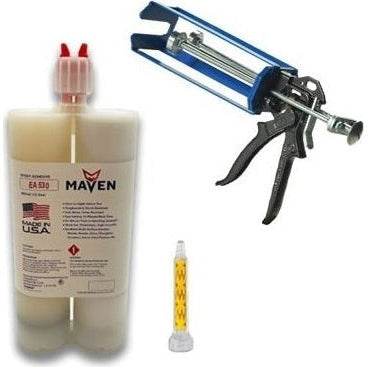

Please Note: These cartridges are designed to work best with a 50ml or 400ml cartridge Dispenser, respectively. We advise you use a 50ml or 400ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

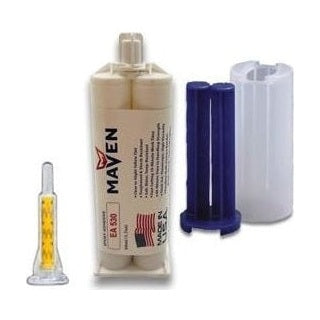

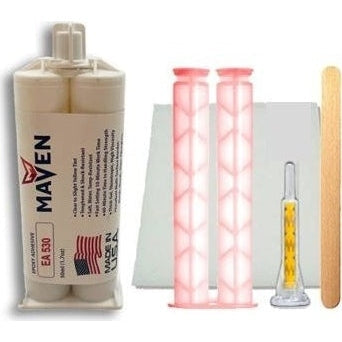

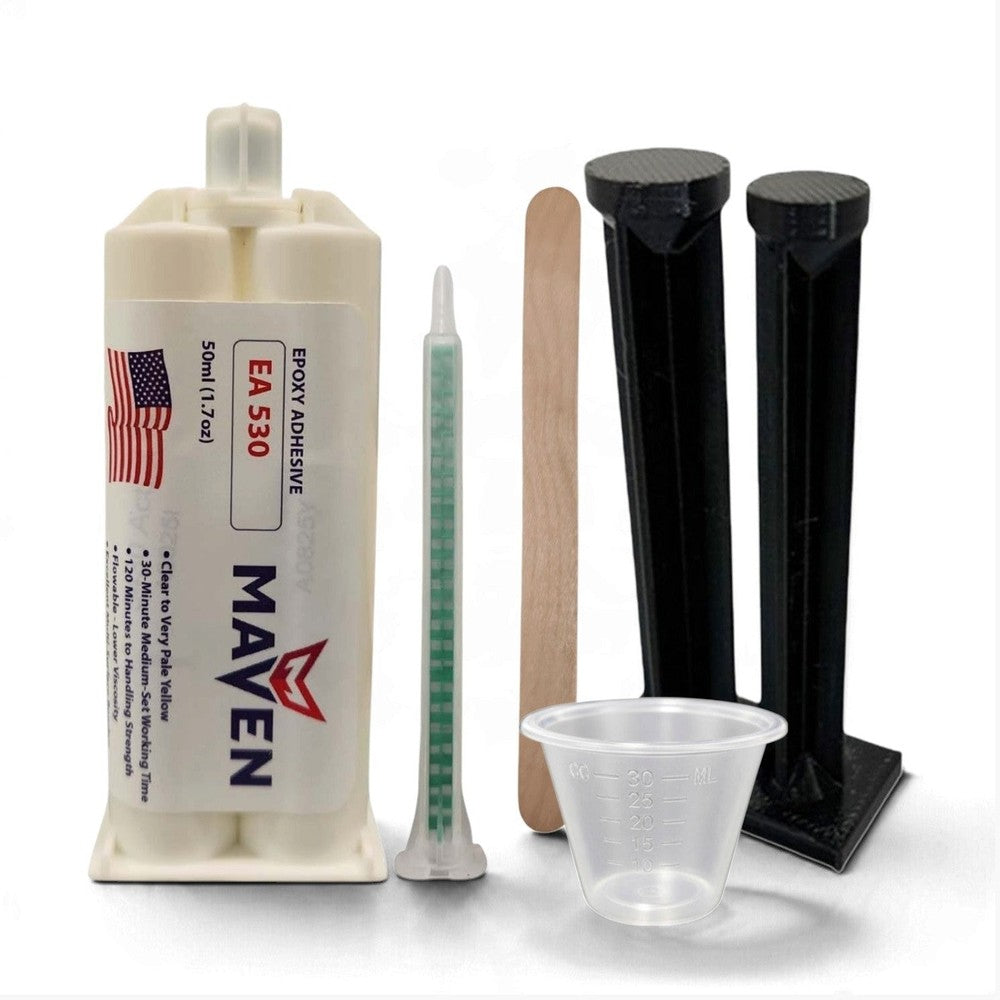

If you prefer not to use a Dispenser, we have some 50ml kits that include hand tools or caulking dispenser adapters, as pictured, that you can use for fast small jobs. But the 400ml cartridges really need to use a 400ml Dispenser, they're just too big to effectively use without the dispenser.
- 30 minute Set Time / Working Time
- Handling Strength 2 hours
- Excellent General Purpose, Fast-Set Epoxy Adhesive for Craftsman and Industrial uses
- Bonds to wide variety of materials
- Electrically Insulating (does not conduct)
- Excellent resistance to water and solvents
Cured Product Characteristics
Color: clear with very pale yellowish tint
Work life (10 gm mass): 30 minutes
Handling strength: 2 hours
Full cure: 24 hours
Mixing Ratio: 1:1
Mixed viscosity: 10,000 cP
Operating temp: -40F to 180F (-40C to 80C)
Shore D Hardness: 80
VOC Content: 0.1%
Properties of uncured material (Resin)
Specific Gravity: 1.1
Viscosity@25°C, cP: 10,000 - 15,000
Properties of uncured material (Activator)
Specific Gravity: 0.96
Viscosity@25°C, cP: 8,000 - 12,000
Color: Clear pale yellow
Tensile Strength: 1500 psi
Elongation (Failure strain): 6-18%
Chemical resistance: Excellent resistant to hydrocarbons, acids and bases and polar solvents.
Directions of applications
Wipe off and degrease the surface to be bonded. Use safety glasses and gloves to avoid skin contact. Dispense a desirable amount of adhesive using a dispensing dispenser. The nozzle sizes can be selected according to the desired bond thickness. Join the substrates with in 60 minutes and allow it to cure at room temperature. Do not disturb the parts during the curing process. Excess adhesive can be wiped off. (For optimum strengths, surface preparation for the metals like sandblast, etching will be needed).
Safety and handling
Wear safety glasses and gloves. Contains mercaptan and amine accelerators. Do not breathe vapors. Keep out of the reach of children. Once used keep the containers closed.
Storage and shelf life
Store the product between 60-80℉. Shelf life is 15 months if stored as recommended.
