Maven Epoxy EA 501 Gel - Very Fast Set 1 Min, Thick Gel Translucent Clear-1:1 ratio

In stock
Which Kit do you Need?
Regular price $28.00 CAD
17 units available
17 units are available

Maven Epoxy EA501 Gel is a 2-part High-Viscosity (no-flow, no-drip) Thick Gel Epoxy Adhesive with a very fast set time of 30 to 60 seconds (1 minute). When mixed in equal volumes of resin and hardener, it reacts to give a very-fast-setting rigid and tough bond.

It is excellent for applications needing a super-fast setting, and stay-in-place, no drip and no settling adhesive is needed.

This product is translucent clear, non shrinking and gives instant adhesion. EA501 Gel is recommended to bond various materials like metals, glass, wood, FRP, concrete, stone and ceramics. It has a set time (working life) of 1 minute, and handling strength can be achieved in less than 5 minutes. Give excellent bond strength on various substrates.

It is optimized for, and frequently used in, EOD and First-Responder applications.

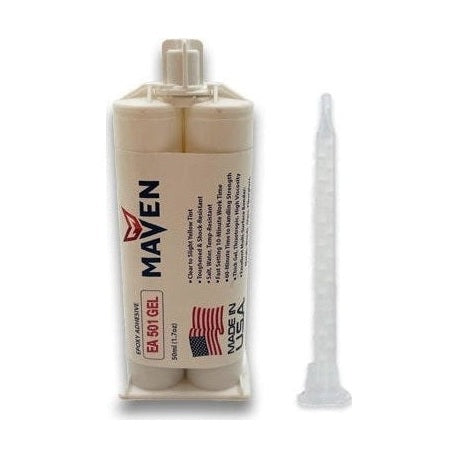

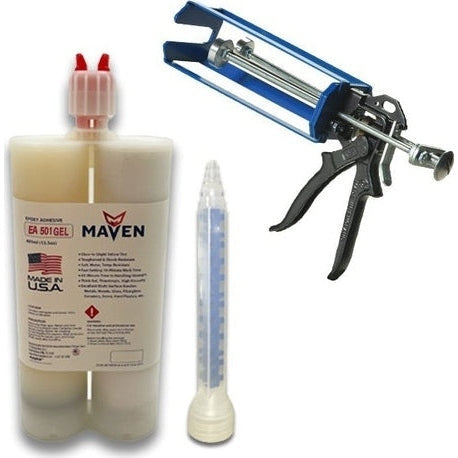

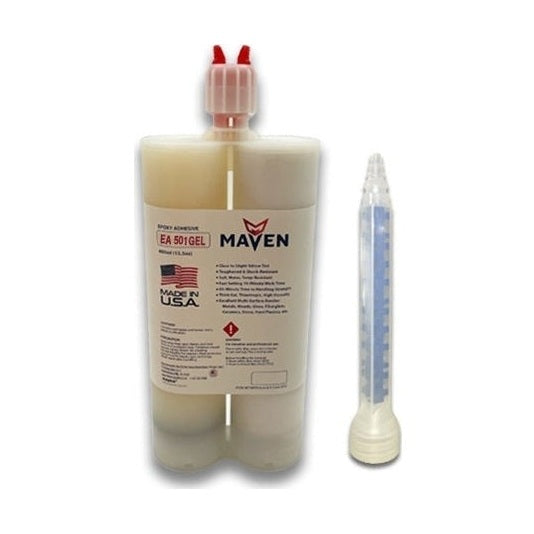

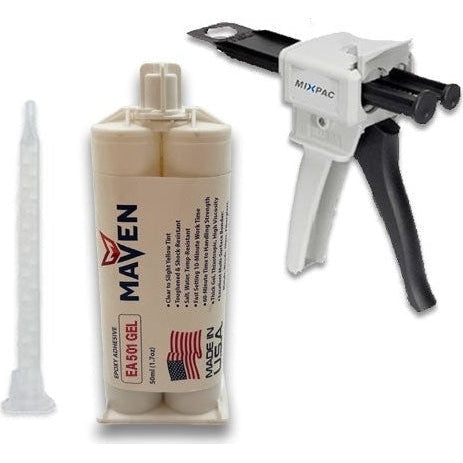

Please Note: These cartridges are designed to work best with a 50ml or 400ml cartridge Dispenser, respectively. We advise you use a 50ml or 400ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

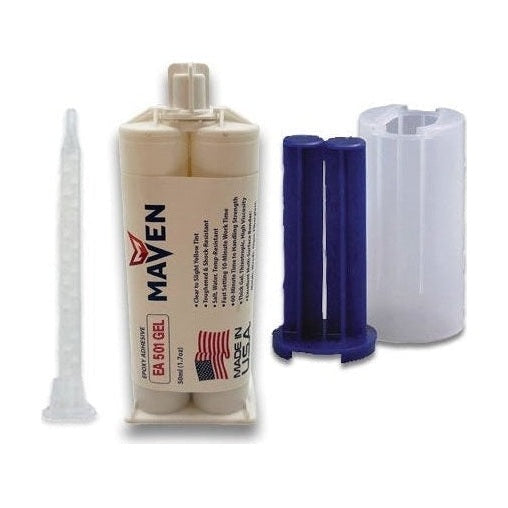

If you prefer not to use a Dispenser, we have some 50ml kits that include hand tools or caulking dispenser adapters, as pictured, that you can use for fast small jobs. But the 400ml cartridges really need to use a 400ml Dispenser, they're just too big to effectively use without the dispenser.

Key Features

  • 1 minute (30 second to 60 second) Working Time
  • High-Viscosity, Thick Gel, Low-Flow Formula, so it will not 'drip' or 'run' much at all.
  • Frequently used in EOD and First-Responder applications
  • Excellent General Purpose Fast-Set Epoxy Adhesive for Craftsman and Industrial uses
  • Bonds to wide variety of materials
  • Electrically Insulating (does not conduct)
  • Excellent resistance to water and solvents

Cured Product Characteristics

Color: Clear - Translucent
Work life (10 gm mass): 30-60 seconds
Handling strength: 3-5 minutes
Full cure: 1-2 hours
Mixing Ratio: 1:1

Operating temp: -40F to 180F (-40C to 80C)
Shore D Hardness: 80
VOC Content: 0.1%

Properties of uncured material (Resin)
Specific Gravity: 1.1
Viscosity@25°C, cP: Thixotropic Gel, 200,000cp and higher
Color: Clear

Properties of uncured material (Activator)
Specific Gravity: 0.96
Viscosity@25°C, cP: Thixotropic Gel, 200,000cp and higher
Color: Clear

Tensile Strength: 1200-1500 psi

Elongation (Failure strain): 6-18%
Chemical resistance: Excellent resistant to hydrocarbons, acids and bases, but it is susceptible to polar solvents.

Directions of applications
Wipe off and degrease the surface to be bonded. Use the gloves to avoid skin contact. Dispense a desirable amount of adhesive using a dispensing dispenser. The nozzle sizes can be selected according to the desired bond thickness. Join the substrates with in 60 minutes and allow it to cure at room temperature. Do not disturb the parts during the curing process. Excess adhesive can be wiped off. (For optimum strengths, surface preparation for the metals like sandblast, etching will be needed).

Safety and handling
Wear safety glasses and gloves. Contains mercaptan and amine accelerators. Do not breathe vapors. Keep out of the reach of children. Once used keep the containers closed.

Storage and shelf life
Store the product between 60-80℉. Shelf life is 15 months if stored as recommended.
