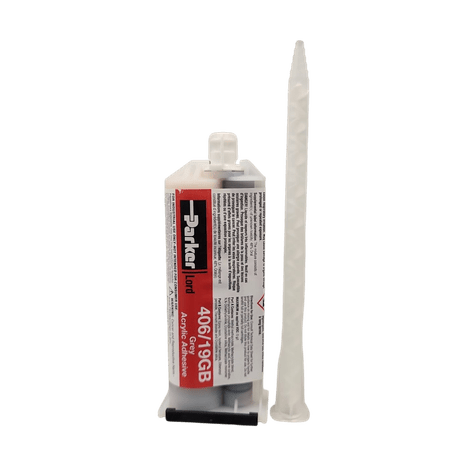

LORD 406/19GB 4-6 Minute "Glass-Bead" formula Temperature Resistant, Non-Sag acrylic adhesive

In stock
SKU: LORD_406/19GB_050ML_GREY_3021067
Regular price $42.00 CAD
38 units available
38 units are available

LORD 406/19GB is popular for replacing traditional welding, brazing, riveting and other mechanical fastening methods.

The 'GB' code means Glass Microbead infused, which enables a controlled minimum bondline width.  Some applications have specific bondline requirements, and Glass Microbeads are an effective means of accomplishing this.  It also tends to strengthen bond performance as well.

406/19GB performs particularly well in low-temperature environments and applications that are subject to high impact or high peel loads. LORD 403, 406 and 410 acrylic adhesives all provide a range of working times to accommodate a wide variety of process requirements.

Features and Benefits

  • Fast Setting 6 to 10 minute set time (aka working life)
  • Fast time to handling strength of 12 to 17 minutes
  • Versatile“ bonds a wide range of unprepared metals with minimal substrate preparation, as well as engineered thermoplastics including XENOY, polycarbonate, ABS and acrylics.
  • Temperature Resistant performs at temperatures from -40 °F to +300° (-40°C to +149°C).
  • Envirnomentally Resistant resists dilute acids, alkalis, solvents, greases, oils, moisture, salt spray and weathering; provides excellent resistance to indirect UV.
  • Non-Sag remains in position when applied on vertical or overhead surfaces, allowing for greater process flexibility.
  • UL Rated when mixed with LORD Accelerator 19, adhesive system is UL 746C certified.

Typical Properties

Appearance Off-White to Tan Paste
Viscosity, cP @ 77 °F (25 °C) 100,000 – 300,000
Density, lb/gal (kg/m^3) 9.1-9.7 (1090-1162)
Flash Point, °F ( °C) 59 (15)


Typical Properties of Adhesive Mixed w/ Accelerator

Mix Ratio by Weight 3.02:1
Mix Ratio by Volume 4:1
Solids Content, % 100
Working Time, min @ 75 °F (24 °C) 6-10
Time to Handling Strength, min @ 75 °F (24 °C) 12-17
Mixed Appearance Tan Paste
Cured Appearance Tan to Green


Typical Cured Properties

Tensile Strength at Break, psi (MPa)
ASTM D638, modified
4650 (32.1)
Elongation, %
ASTM D638, modified
Young's Modulus, psi (MPa)
ASTM D638, modified
130,000 (896.3)
Glass Transition Temperature, °F ( °C)
ASTM E1640-99, by DMA
162 (72)
