Product Name
Keep-Nut Depth Go-No-Go Gauge Tool
Brief Description
This precision inspection tool is designed to verify the exact diameter and depth of pilot holes before installing Keep-Nut self-anchoring inserts. It ensures correct hole sizing, eliminating guesswork and preventing costly installation errors, thereby guaranteeing optimal pull-out strength and a secure, lasting connection for Keep-Nut inserts in various hard materials.
Popular Applications & Uses
- Verifying pilot hole dimensions for Keep-Nut inserts in materials such as stone, composites, solid surface, HPL, glass, fiber cement, and wood.- Ensuring precise installation of undermount sinks using Keep-Nut inserts.- Quality control for hole preparation in ventilated facades and wall cladding applications.- Confirming correct hole sizing for furniture and shopfitting assemblies.- Preventing costly installation errors and reducing rework in manufacturing processes.
Industries that Commonly Use It
- Construction/Building Services- Furniture- Cabinet & Woodworking- Countertop- Cladding- General Manufacturing- Plastic Fabrication- Metal Fabrication- Sign & Display- Aerospace/Defense- Automotive Service/Repair- Medical Device/Prosthetics
Special and Unique Features

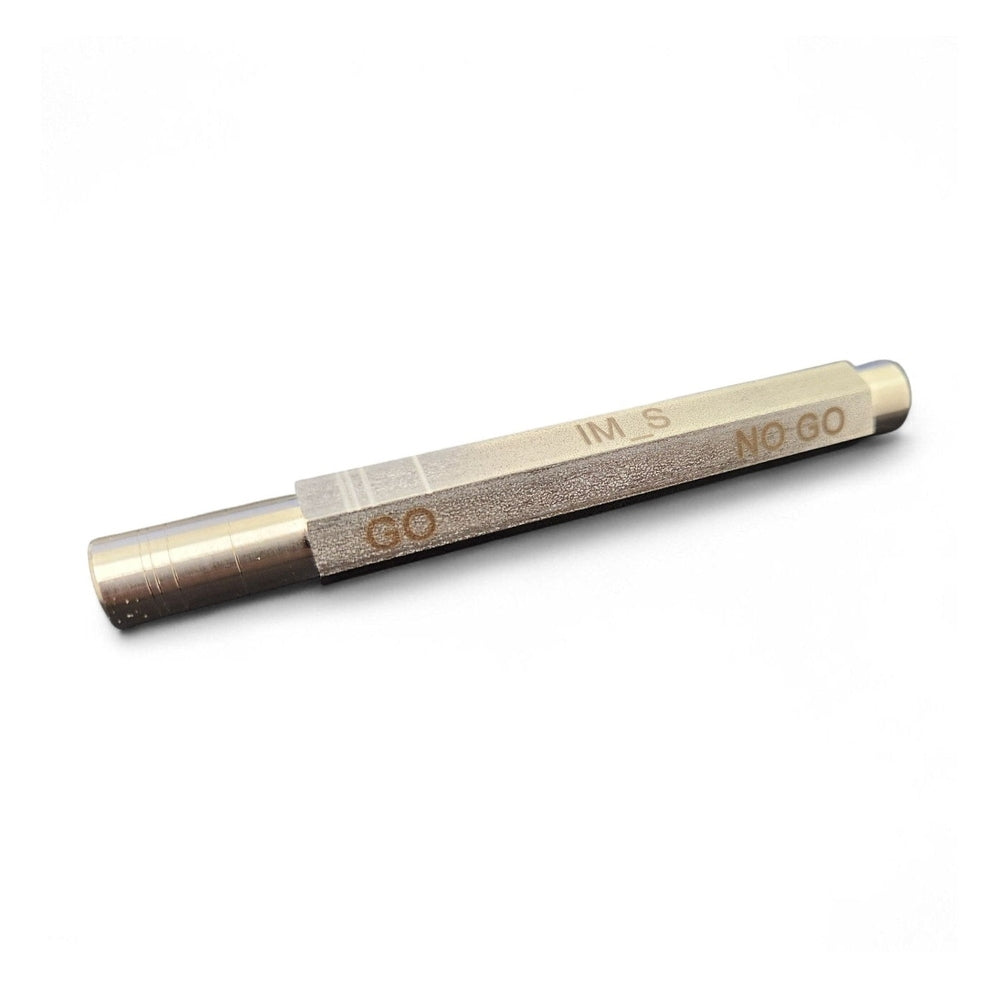

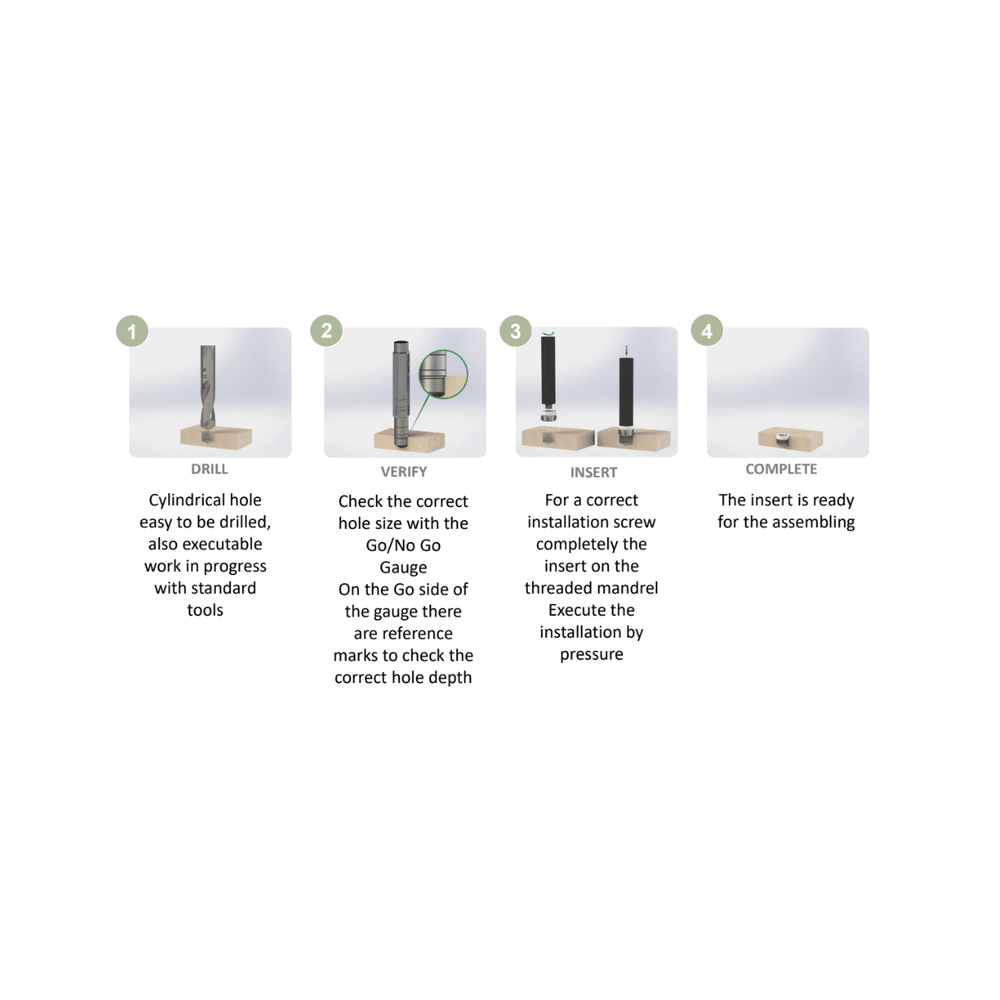

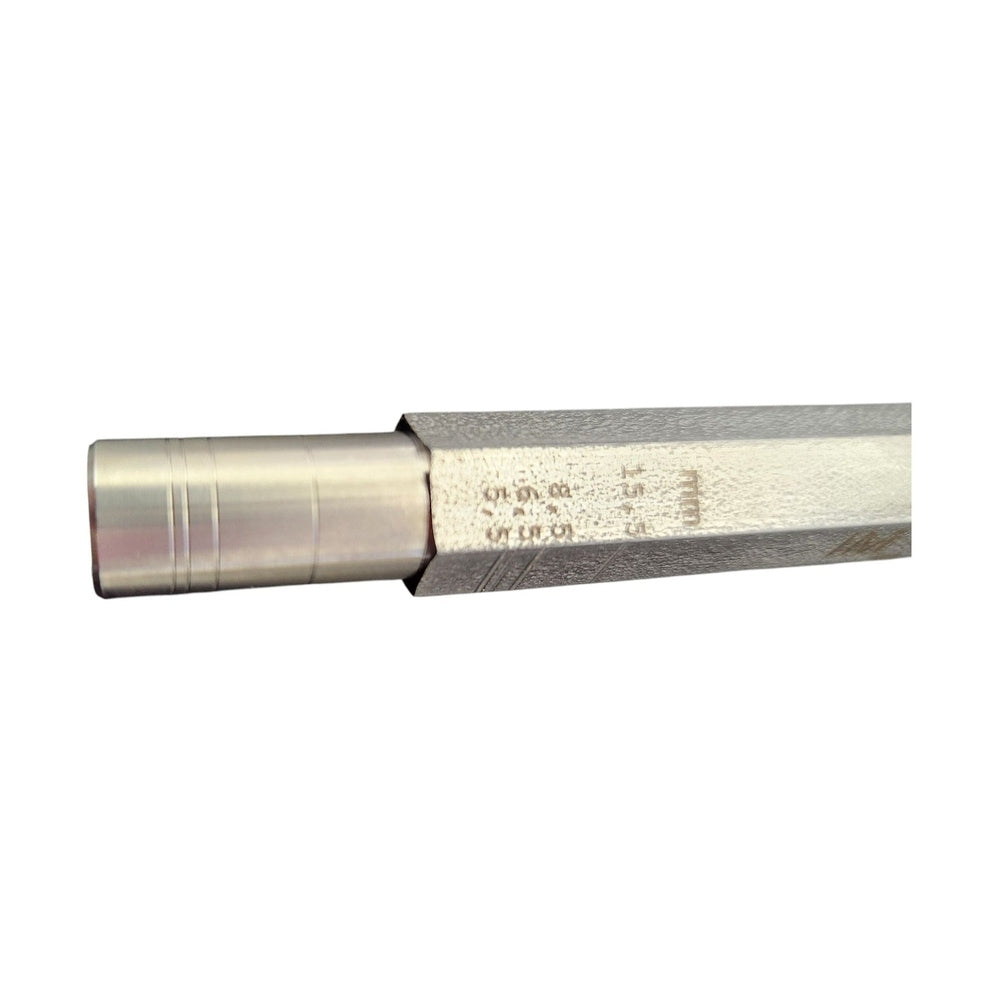

- **Go/No-Go Design:** Features two distinct ends, a "GO" end and a "NO-GO" end, to quickly and easily confirm if a pilot hole's diameter is within the specified acceptable tolerances.- **Depth Verification:** Incorporates a reference line on the "GO" side of the gauge to ensure the drilled hole meets the required depth specifications for the Keep-Nut insert.- **Precision Machined:** Engineered and machined with high precision to eliminate guesswork and prevent costly installation errors.- **Durable Construction:** Manufactured from robust, long-lasting materials suitable for professional and industrial use.- **Ease of Use:** Designed for simplicity, requiring minimal skill or interpretation to operate effectively, making it ideal for production environments.- **Specific to Keep-Nut Inserts:** Tailored precisely to the exact specifications and requirements for optimal Keep-Nut insert installations.
Key Properties
- **Attribute Inspection:** Provides a clear pass/fail result, indicating whether a hole is within tolerance, rather than an exact dimensional measurement.- **Dimensional Verification:** Capable of checking both the diameter and the depth of a drilled pilot hole.- **Tolerance Control:** Ensures that drilled holes adhere to the precise specifications necessary for the optimal performance and pull-out strength of Keep-Nut inserts.- **Material:** Typically constructed from hardened steel or other durable metals to maintain accuracy and withstand repeated use.
Surface Compatibility
- Used for verifying holes in a wide range of hard materials compatible with Keep-Nut inserts, including:- Granite- Marble- Quartz- Solid Surface (e.g., Corian)- Composites (e.g., carbon fiber)- HPL (High-Pressure Laminate)- Glass- Fiber Cement- Wood- Other compact materials
Known backups / known substitutes
- **Calipers:** Provide precise dimensional measurements but require more skill and time for interpretation compared to a go/no-go gauge.- **Micrometers:** Offer highly precise measurements of dimensions, providing an exact size rather than a simple pass/fail result.- **Optical Comparators:** Project magnified images of parts for detailed measurement and comparison against specifications, offering more comprehensive analysis than a go/no-go gauge.- **Telescopic Gauges:** Used to measure internal dimensions, which can then be manually compared against specified tolerance standards.- **General Purpose Pin Gauges:** Can check hole diameters but may not include depth verification or be specifically calibrated for Keep-Nut tolerances.- **Thread Gauges:** Other types of go/no-go gauges designed specifically for checking internal or external threads.- **Manual Measurement Tools:** Rulers or tape measures offer less precision and are more susceptible to human error for critical dimensions.
Comparison Note
The Keep-Nut Depth Go-No-Go Gauge Tool is uniquely engineered for the specific installation requirements of Keep-Nut inserts, providing a rapid, reliable, and user-friendly pass/fail inspection for both pilot hole diameter and depth. While general measurement instruments like calipers or micrometers offer exact dimensional readings, they are more labor-intensive and demand greater operator skill. Generic go/no-go gauges typically verify only diameter and lack the precise depth verification and specific tolerances crucial for optimal Keep-Nut performance. This specialized gauge significantly streamlines the installation process, minimizes errors, and ensures the maximum mechanical integrity and pull-out strength of Keep-Nut inserts.
