(Discontinued) Huntsman Araldite EP 300 High-Temp Thixotropic Thick Paste 30-Minunte Epoxy (Authorized Replacement is Araldite 2035)

Out of stock
SKU: AR_EP_300_200ml
Which Kit do you Need?
Regular price $195.00 CAD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA

Please Note:

Huntsman Araldite EP 300 has been Discontinued by Huntsman due to material ingredient supply issues.

Authorized Replacement is Araldite 2035

EP 300 A/B was a two component, room temperature curing epoxy adhesive designed for extreme environments. The advance adhesive was a gap-filling thixotropic paste with good retention of strength after environmental aging. It offers high lap shear strength and compression at ambient and elevated temperatures. The epoxy adhesive has no SVHC as defined under REACH and it was excellent for liquid shim. It was well suited for demanding applications requiring high heat resistance and retention of compressive strength.

EP 300 epoxy paste adhesive has a service temperature up to 204°C. The product was well suited for bonding a wide variety of substrates including metals, composites and many other dissimilar materials. The combination of a high lap shear strength and compression make this adhesive well suited for aerospace and composites. It offers a fast cure, with rapid buildup of lap shear strength with an easy mix ratio of 2:1 PBV. Once thoroughly mixed together, the material was gray in color. Specific gravity is 1.3 per ASTM D-891 and viscosity was a thixotropic paste at 25°C per ASTM D-2196.

EP 300 A/B can be spread with a spatula to the pretreated substrate joint. A layer of 0.004 to 0.012 inches thick was recommended to provide the maximum lap shear strength. Once the material was applied it needs to be clamped together. Even pressure throughout the joint will ensure optimum performance. EP 300 will take approximately 5 days at room temperature to fully cure, or just about 1 hour at 150F.

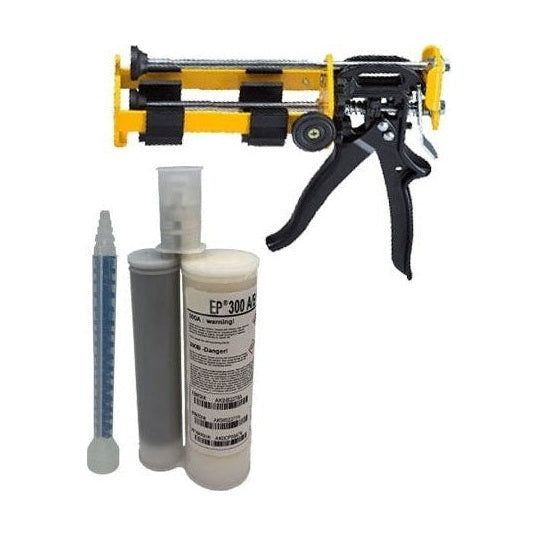

Please Note: These cartridges are designed to work best with a 50ml or 200ml cartridge Dispenser, respectively. We advise you use a 50ml or 200ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

If you prefer not to use a Dispenser, all 50ml cartridge orders we sell will come with one manual hand plunger, as pictured, that you can use for fast small jobs. But the 200ml cartridges really need to use a 200ml Dispenser, they're just too big to easily use without the dispenser.

Key Features

  • 30-45 Minute Working Time
  • Extreme Strength
  • Great as a liquid/gel shim
  • High Temp Resistance (400 F, 204 C)
  • Thixotropic Gap Filling Gray Epoxy Gel
  • High Shear and Peal Strength
  • Bonds to wide variety of materials
  • 2:1 mix ratio

Technical Specs

Part Numbers

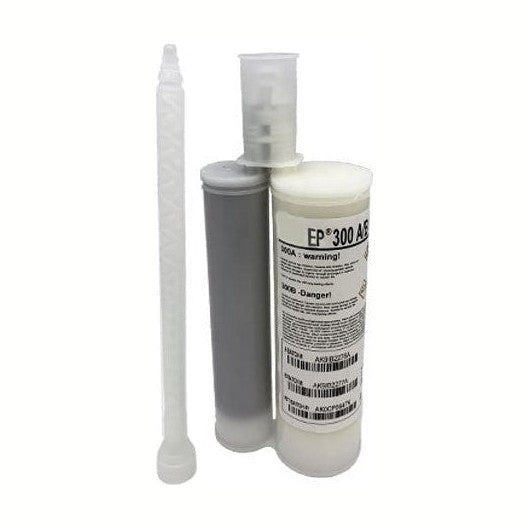

200ml Cartridges - 414908

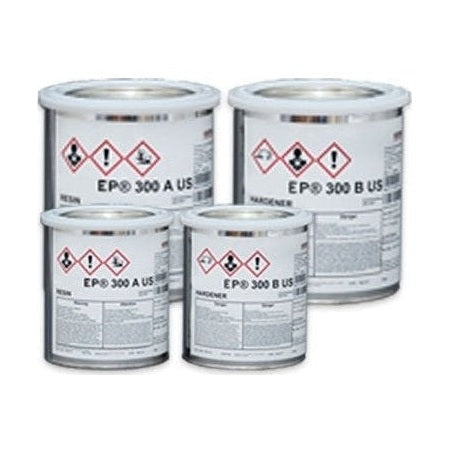

1-Quart Kits - 3762608

2-Gallon Kits - 3762808

Item Weight Varies by packaging
Product Dimensions

200ml Cartridges: 9 x 4 x 2 inches

2-Gallon Kit: One Gallon of Part A and One Gallon of Part B

Origin Made in USA
Item model number EP 300
Color Gray
Material Epoxy
Item Package Quantity 1
Number Of Pieces 1
Max PSI Strength 7800 PSI

Special Features Impact Ready
Included Components Quick Connect Fixtures
