Leister 168.171 GROOVER 500-LP, Cordless Floor Grooving Machine with universal tungsten carbide tipped blades 18.0V/5.0Ah Battery + Charger 120V (US-plug)

Product Name

Leister 168.171 GROOVER 500-LP, Cordless Floor Grooving Machine with universal tungsten carbide tipped blades 18.0V/5.0Ah Battery + Charger 120V (US-plug)

Brief Description

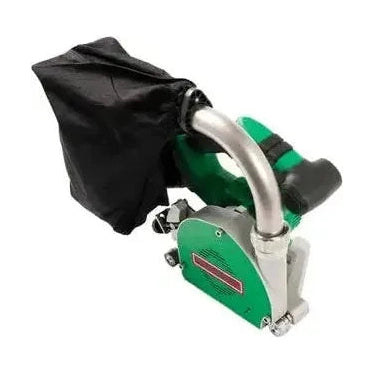

The Leister GROOVER 500-LP (Article No. 168.171) is a cordless, battery-powered floor grooving machine designed for precise and efficient milling of grooves in various resilient floor coverings. It prepares joints for welding seams in materials like PVC, PE, PUR, linoleum, and rubber. Its cordless operation provides maximum flexibility on job sites, eliminating the need for power outlets and extension cables.

Popular Applications & Uses

- Milling grooves for weld seams and joints in resilient floor coverings.- Preparing vinyl, linoleum, rubber, and safety flooring for welding.- Ideal for use in commercial installations such as gymnasiums, schools, kindergartens, hospitals, clean rooms, and industrial kitchens where strict hygiene regulations apply.- Grooving along walls or other objects as close as 25 mm (0.98 inches).- Suitable for both small and large areas of floor covering.

Industries that Commonly Use It

- Flooring Installer or Manufacturer- Construction/ Building Services

Special and Unique Features

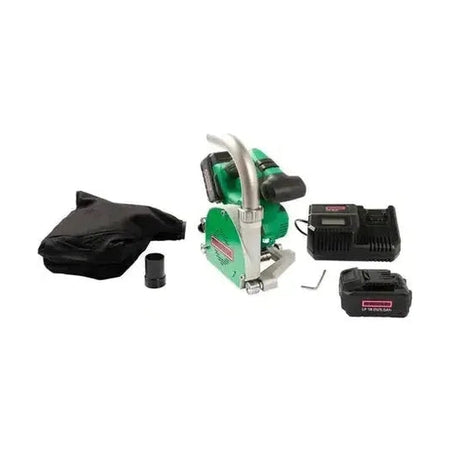

- Cordless, battery-powered operation for maximum flexibility and no tripping hazards from cables.- Universal tungsten carbide tipped blade (Ø 130 x 3.5 mm, T12 parabolic profile) suitable for both plastic and natural floor coverings.- Infinitely adjustable groove depth from 0 to 6 mm (0 to 0.24 inches).- Sensing roller for reliable grooving and consistent depth, even on uneven floors.- Integrated dust extraction system with a dust bag and adapter for a vacuum cleaner, ensuring reduced dust particles and a cleaner work environment.- LED light to illuminate the grooving area, especially helpful in dimly lit spaces.- Side stop for grooving along rails, useful for long seam joints or guide rails.- Three-point stand for increased stability and precise positioning.- Low-maintenance, brushless motor.- Comes with two 18V/5.0Ah Lithium battery packs and a charger, allowing for continuous operation.

Key Properties

- Voltage: 18V (battery), 120V (charger US-plug)- Battery Capacity: 5.0Ah (90 Wh)- Milling Blade Type: Universal tungsten carbide parabolic - 12 teeth- Milling Blade Diameter: 130 mm (5.12 inches)- Groove Depth Adjustment: 0 - 6 mm (0 - 0.24 inches), infinitely variable- Joint Width: 3.5 mm- Idle Speed: 5,000 rpm- Weight: 5.5 kg (12.2 lbs) including battery and dust bag- Brushless drive motor- Charging time: 45 minutes (max)

Surface Compatibility

- Plastic floor coverings: PVC-P, PE, PUR (Polyurethane)- Natural floor coverings: Linoleum, Rubber- Safety flooring

Known backups / known substitutes

- Other Leister grooving machines (e.g., corded Leister GROOVER)- Manual joint planes or joint gouges (less efficient and precise)- Other brands of electric or cordless floor grooving machines (e.g., ARIK Self-Leveling Electric Floor Grooving Machine)- For concrete grooving, different types of machines like walk-behind groovers, ride-on groovers, or scarifiers are used, which are not direct substitutes for resilient floor grooving.- Angle grinders (lack precision and depth control for floor grooving).

Comparison Note

The Leister GROOVER 500-LP stands out due to its cordless, battery-powered operation, offering maximum flexibility and eliminating cable-related hazards and downtime. Unlike traditional corded groovers or manual tools, it provides consistent groove depth even on uneven floors thanks to its sensing roller. Its integrated dust management system and LED light enhance user comfort and precision, making it a highly efficient and reliable tool for professional flooring installers. While other grooving machines exist, the 500-LP's combination of portability, precision, and features for resilient flooring makes it a premium choice in its category.
