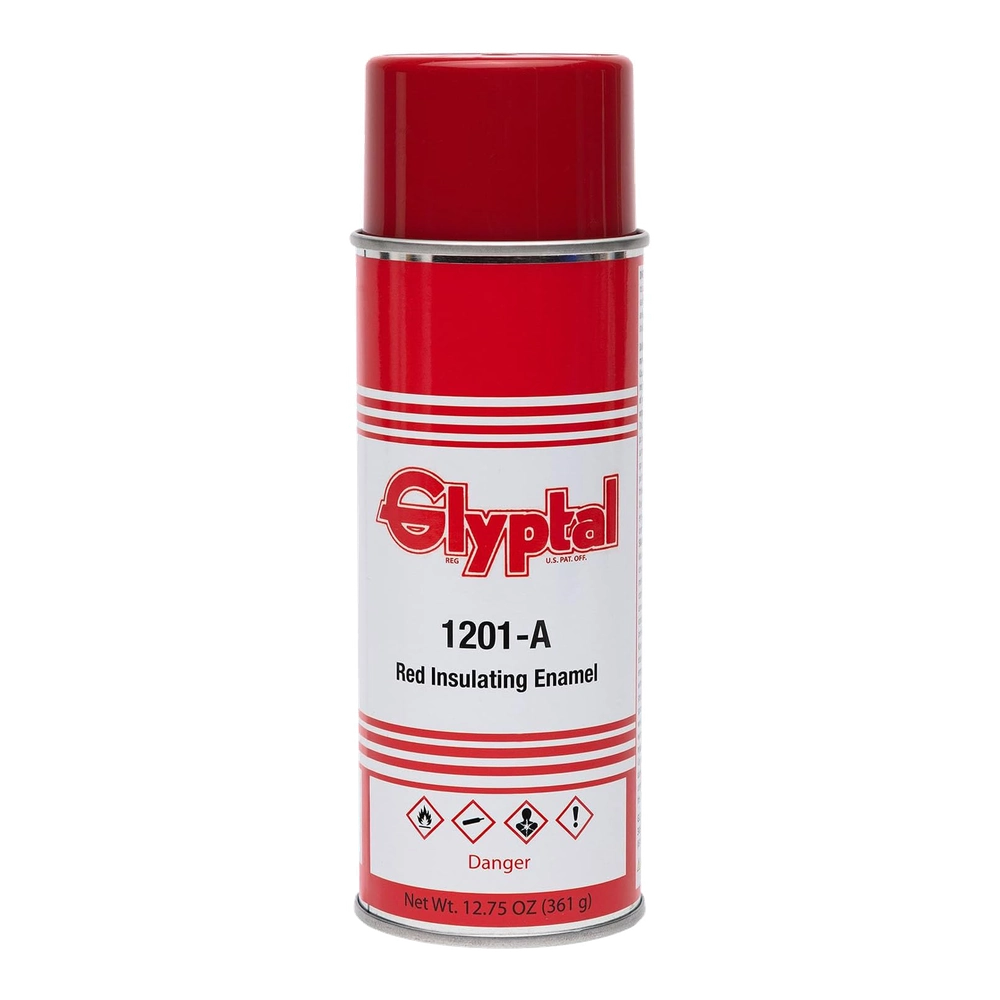

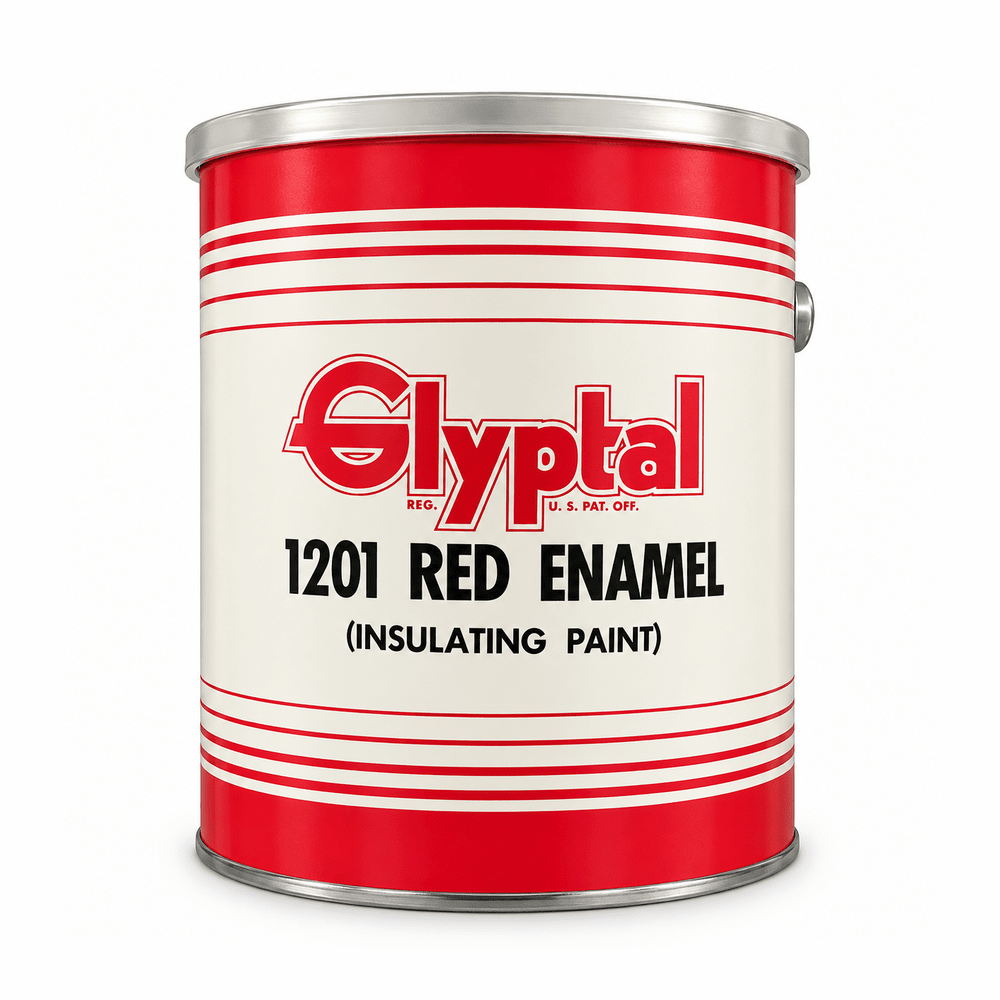

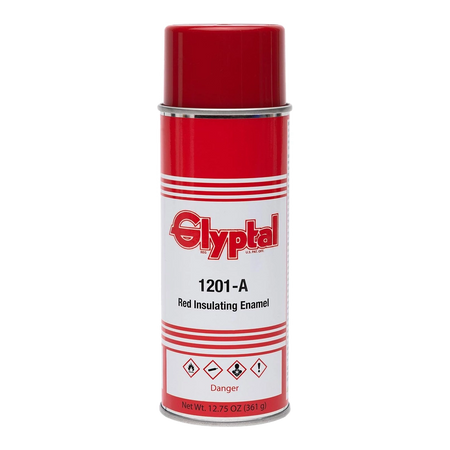

GLYPTAL 1201 Red Insulating Enamel – Electrical Insulation, Sealer and Protective Coating
Need Datasheets? Need Accessories?
• Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)• Check out Popular Accessories below by scrolling down just a bit on this page.
Regular price
$74.00 CAD
Call for ETA
GLYPTAL® 1201 Red Insulating Enamel is a versatile industrial coating developed to insulate, seal and protect electrical components, metal surfaces and industrial equipment. Its durable, low-gloss red film adheres to materials including metal, ceramic, porcelain, concrete, fiber and wood.
Originally designed for coating electrical coils and armatures, GLYPTAL 1201 also provides dependable protection against moisture, corrosion, oil, salt water, mild acids, heat, dust and abrasion. It can be used as an electrical insulating coating, industrial primer, protective finish, concrete sealer, gasket adhesive or thread sealer.

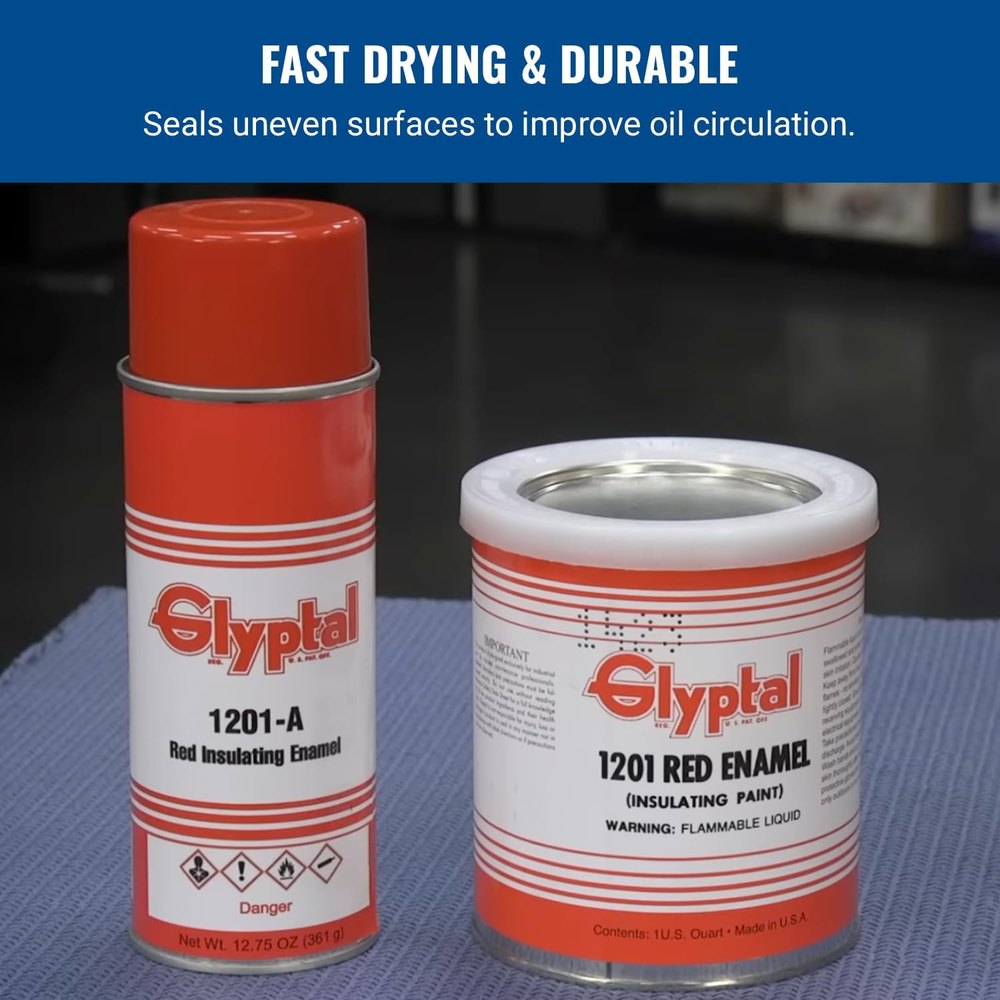

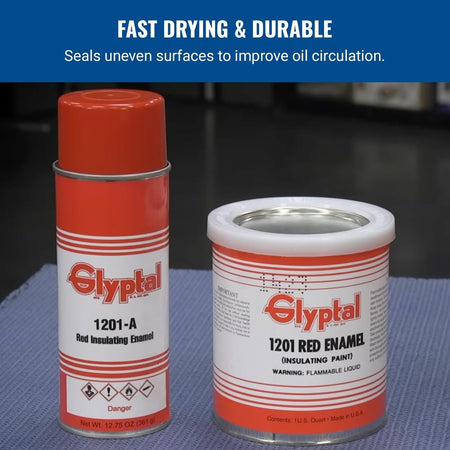

The enamel is supplied ready for brush application and may be thinned appropriately for spraying. It becomes dust-free in approximately 30 minutes and can be handled after approximately two hours under typical conditions.
Key Features
-
Provides electrical insulation and environmental protection
-
Rated dielectric strength of 1,500 volts per mil when dry
-
Withstands continuous temperatures up to 135°C (275°F)
-
Excellent transformer-oil resistance
-
Good resistance to water, salt water and acids
-
Flexible film helps resist cracking, impact and abrasion
-
Strong adhesion to metal, ceramic, porcelain, concrete, fiber and wood
-
Air dries at room temperature or may be baked for a smooth finish
-
Suitable for brushing or properly thinned spray application
-
Meets the requirements of MIL-E-22118
Popular Applications
GLYPTAL 1201 may be used for:
-
Insulating electrical coils and armatures
-
Coating motor, generator and transformer housings
-
Protecting electrical and industrial components from moisture
-
Priming structural iron and steel
-
Sealing concrete floors
-
General plant and machinery maintenance
-
Protecting winches and outdoor equipment against corrosion
-
Coating the interiors of hydraulic tanks and bearing cases
-
Sealing pipe and stud threads
-
Sealing vacuum-system components
-
Bonding or sealing gaskets
-
Protecting thermostat, water-cooler and truck-control components
Item Specifications
| Specification | GLYPTAL 1201 |
|---|---|
| Product type | Insulating enamel and protective coating |
| Product code | GLY-1201RED |
| Color | Red |
| Finish | Durable low-gloss finish |
| Physical form | Liquid |
| Application methods | Brush; may be thinned for spraying |
| Average solids by weight | 60% |
| Average viscosity at 25°C | 325 cps |
| Solvent system | Xylene |
| Specific gravity | Approximately 1.15–1.17 |
| Initial boiling point | 213°F (100.6°C) |
| Flash point | 65°F (18°C), closed cup, per current SDS |
| Dust-free time at 1 mil | Approximately 30 minutes |
| Tack-free/handling time at 1 mil | Approximately 2 hours |
| Continuous temperature resistance | Up to 135°C (275°F) |
| Dry dielectric strength | 1,500 volts per mil |
| Dielectric strength after 24 hours in water | 350 volts per mil |
| Arc resistance | 480 seconds |
| Insulation resistance | 7.5 × 10⁷ ohms after 24 hours at 90% RH |
| Transformer-oil resistance | Excellent |
| Water resistance | Good |
| Salt-water resistance | Good |
| Acid resistance | Good |
| Alkali resistance | Fair at low concentrations |
| Compatible substrates | Metal, ceramic, porcelain, concrete, fiber and wood |
| Military specification | Meets MIL-E-22118 requirements |
| Transportation classification | UN1263, Paint, Class 3, Packing Group II |
Drying times are typical values and may vary with film thickness, temperature, ventilation and humidity.
Application Information

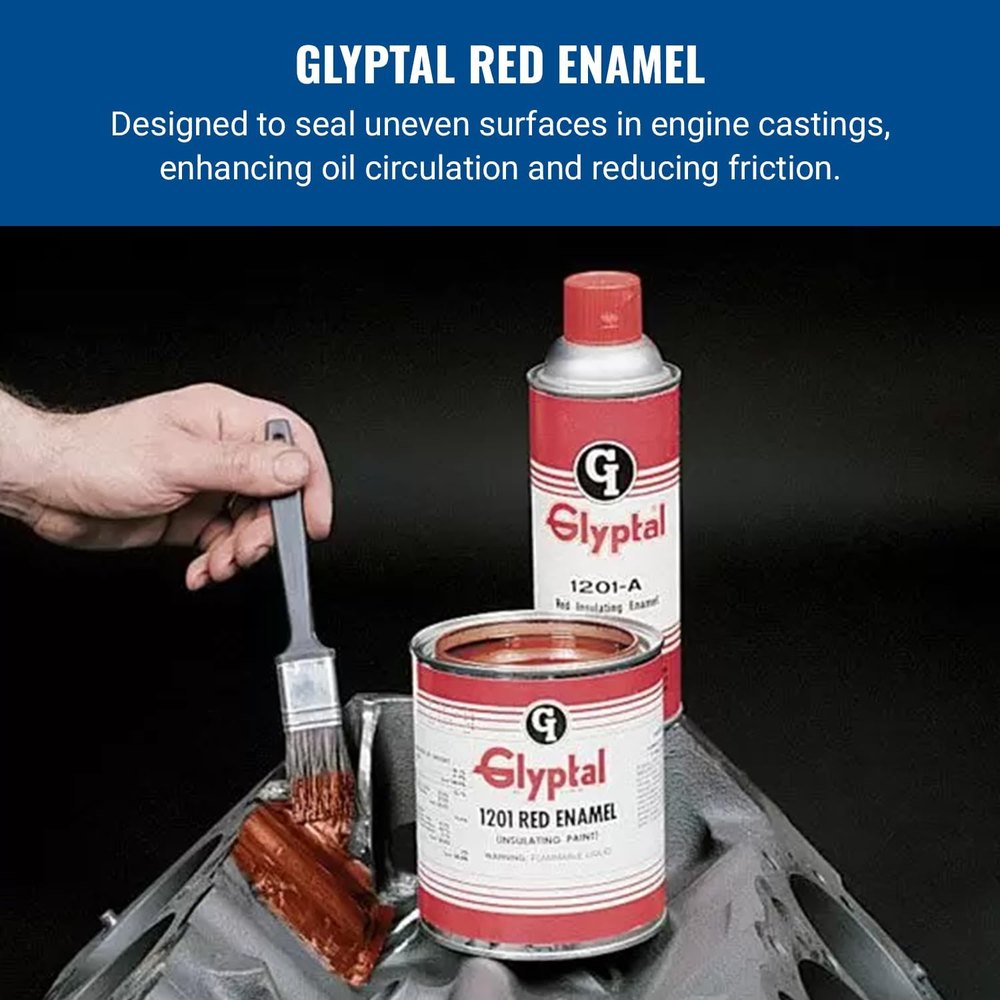

Surfaces should be clean, dry and free of oil, dust, rust and other contaminants before application. Apply by brush as supplied or thin with an appropriate compatible solvent when preparing the coating for spray application. When multiple coats are required, allow adequate drying time between applications.
Test the product on the intended substrate and under actual service conditions before beginning a full production application.

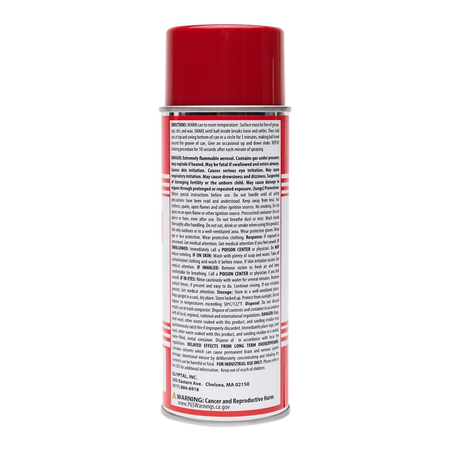

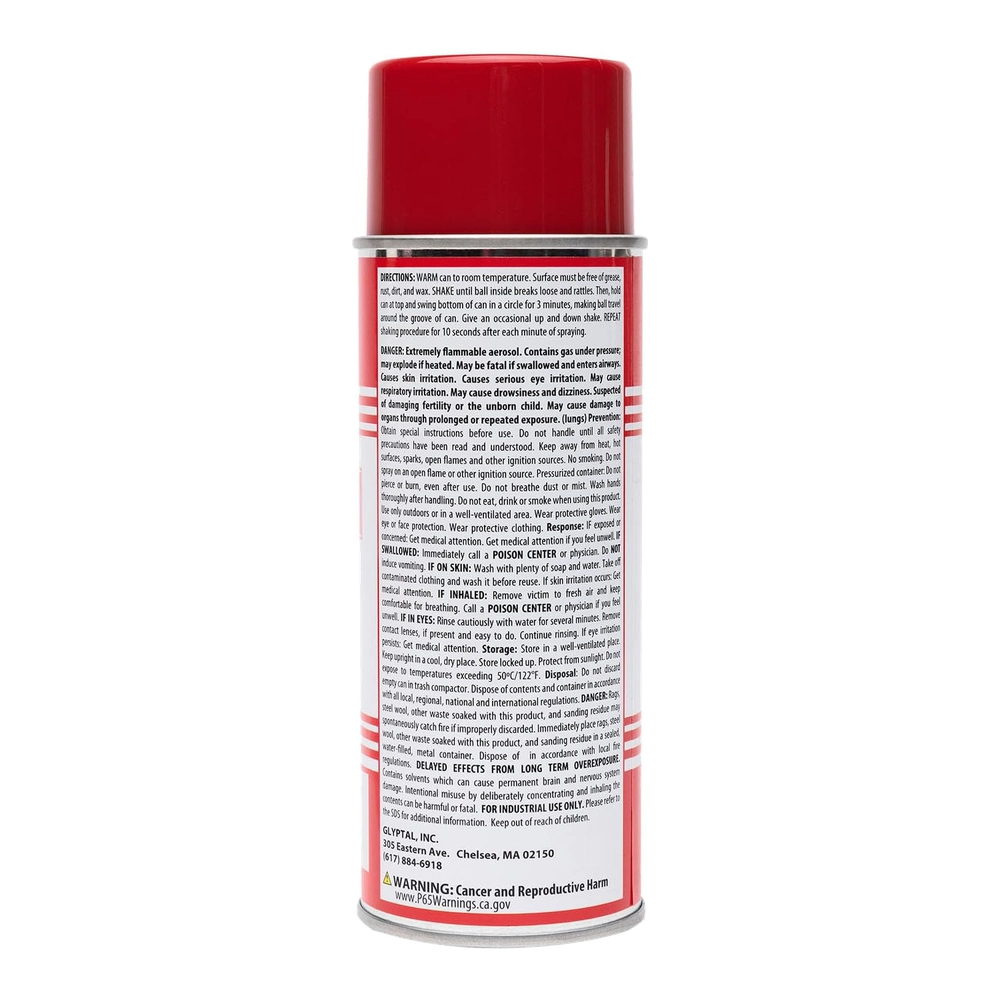

Safety and Handling
GLYPTAL 1201 is a highly flammable solvent-based coating. Use it only outdoors or in a well-ventilated work area and keep it away from heat, sparks, open flames and other ignition sources. Wear appropriate gloves, protective clothing and eye protection. Avoid breathing vapors or spray mist and consult the current Safety Data Sheet before use, storage, transportation or disposal.
