Cox Airflow PPA A300 Pneumatic 2-Part Adhesive Dispenser for 600ml, 450ml, 375ml Multi Ratio (1:1, 2:1, 4:1) Cartridges

In stock
SKU: COX_DP2C 600-MR-525-111
Regular price $853.00 CAD
Currently Out of Stock Place Order and Call for ETA

OR...

Unsure? Try Me
Just 1 Job? Rent Me
Broken? Fix Me

Product details

  • Type Dispensers Pneumatic
  • Vendor Cox Applicators
  • SKU COX_DP2C 600-MR-525-111
  • Barcode COX_DP2C 600-MR-525-111

Cox Airflow PPA A300 Pneumatic 2-Part Adhesive Dispenser for 600ml, 450ml, 375ml Multi Ratio (1:1, 2:1, 4:1) Cartridge Sizes

Matrix of Part Numbers & Uses:
DP2 A300HP DP2C 600-MR-525-111 159382 High Power, Medium & High Viscosity Gels & Pastes, Series 1 Air System for 600ml 1:1 (300 x 300), 450ml 2:1 (300 x 150), 375ml 4:1, (300 x 75)

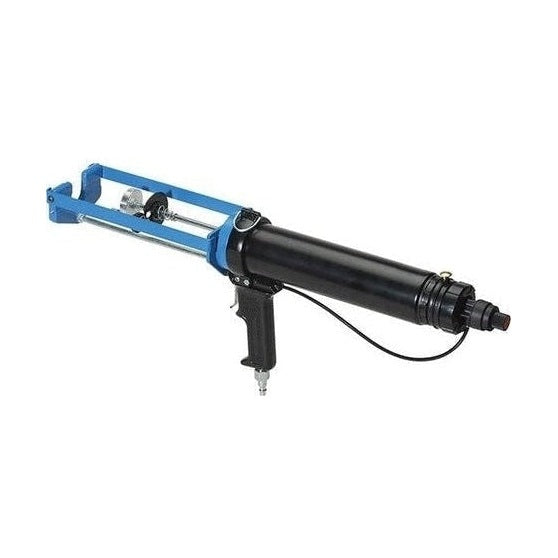

DP2 A300LP DP2C 600-01-220-119 159388 Low Power, Low Viscosity, Series 1 Air System for 600ml 1:1 (300 x 300), 450ml 2:1 (300 x 150), 375ml 4:1, (300 x 75)

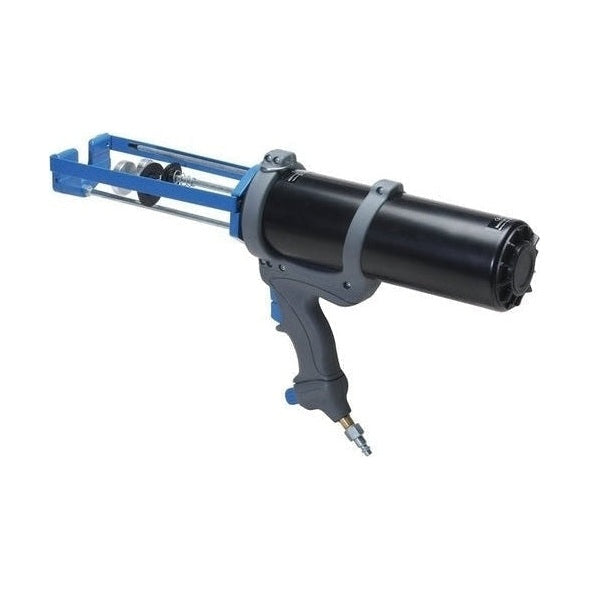

DP2 A300HP-S3-01 DP2C 600-01-500-311 159386 High Power, Medium & High Viscosity Gels & Pastes, Series 3 Air System Dedicated for 600ml 1:1 (300 x 300) only
DP2 A300LP-S3-01 DP2C 600-01-220-311 159393 Low Power, Low Viscosity, Series 3 Air System Dedicated for 600ml 1:1 (300 x 300) only
DP2 A300HP-S3-02 DP2C 600-02-500-312 159387 High Power, Medium & High Viscosity Gels & Pastes, Series 3 Air System Dedicated for 450ml 2:1 (300 x 150) only
DP2 A300LP-S3-02 DP2C 600-02-220-311 159394 Low Power, Low Viscosity, Series 3 Air System Dedicated for 450ml 2:1 (300 x 150) only
  • Works with following cartridge sizes and mix-ratios
    • 600 1:1 (159382, 159388, 159386, 159393)
    • 450ml 2:1 (159382, 159388, 159387, 159394)
    • 375ml 4:1 (159382, 159388)
  • Choose from Series 1 & Series 3 Air Systems
  • Choose from Low Pressure (thin viscosity) & High Pressure (medium & thick viscosity)
  • Nominal Thrust Force 484 lbs.
  • Instant Dump Valve
  • True Adjustable Air Regulator – 100 PSI Maximum Output
  • 145 PSI Maximum Input
  • 100PSI Maximum Output
  • Reverse Air – Fast Plunger Return with Trigger
  • All Components can be ordered - Replaceable Parts
  • Air Hose Connector Included

FEATURES

  • Air Return as Standard
  • Adjustable Air Regulator
  • Quick Exhaust Valve
  • Support Discs for Secure Cartridge Fit

SPECIFICATIONS

  • Cartridge Capacity: 375 mL / 13 oz, 450 mL / 8 oz, 600 mL / 21.1 oz
  • Cartridge Ratio: 1:1, 2:1, 4:1 (must specify)
  • Weight: 3 kg / 7.2 lbs
  • Frame Length: 236 mm / 9.3 in
  • Maximum Force: 5 kN / 1124 lbf
  • Maximum Pneumatic Pressure: 8 bar / 100 psi
  • Air Consumption: 40 liters/min
  • Handle Material: Epoxy Coated Aluminum / Glass Filled Nylon
  • Frame Material: Epoxy Coated Steel
  • Viscosity: Medium/High
