MedMix Mixpac DM2X 400 - 400mL Manual Cartridge Dispenser (Configurable for 1:1, 2:1, 4:1, 10:1 ratios)

In stock
SKU: MIXPAC_DM2X_400-01-60-01
Dispenser or Conversion Kit
Ratio
Regular price $303.00 AUD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA

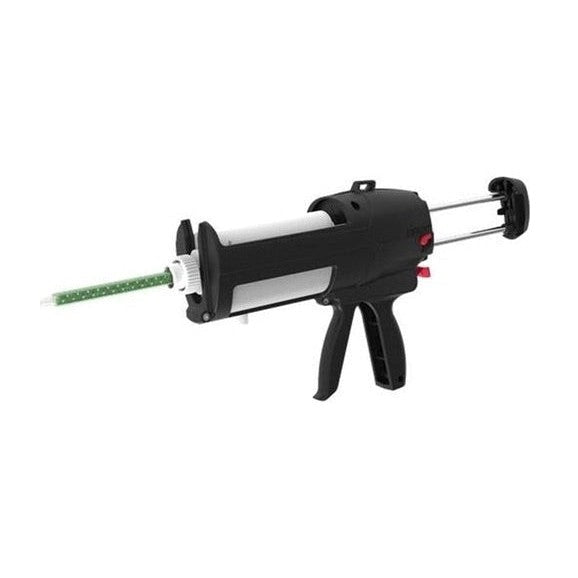

The MedMix MixPac DM2X 400 series manual cartridge dispenser is the new next generation of industry-standard go-to dispensers for industrial and professional two-part adhesive dispensing from 400ml & 490ml cartridges. It offers a durable, lightweight design perfect for mid-to-high volume applications.

The MedMix MixPac DM2X 400 - 400ml & 490ml manual (hand force) cartridge dispenser is available in 1:1, 2:1, 4:1 and 10:1 ratio configurations depending on the material you are dispensing. This manual dispenser works with most standard 400ml and 490ml cartridges including the MedMix C and F series.

Ordering Information:

Dispenser or Conversion Kit Part Number Item ID Mix Ratio

Dispenser

DM2X 400-01-60-01 165807 1:1 & 2:1 cartridges
Dispenser DM2X 200-04-60-01 165808 4:1 cartridges
Dispenser DM2X 200-10-60-01 165809 10:1 cartridges
Conversion Kit CKX 200-01-01 165839 1:1 & 2:1 cartridge
Conversion Kit CKX 200-04-01 165840 4:1 cartridges
Conversion Kit CKX 200-10-01 165841 10:1 cartridges

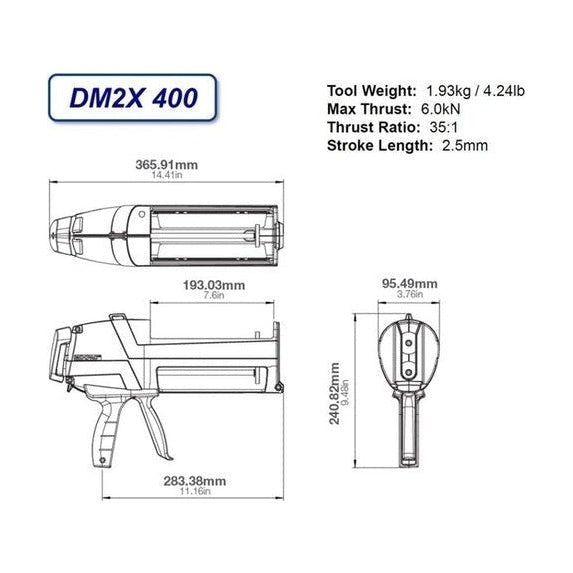

Specifications:

Specification DM2X 200 DM2X 400
Weight

1.60kg / 3.53lbs

1.93kg / 4.24lbs
Length 324mm / 12.7in 366mm / 14.4in
Maximum thrust 5.2kN 6.0kN
Thrust ratio 22:1 35:1
Cartridge capacity 200mL 400mL
Cartridge ratio 1:1/2:1/4:1/10:1 1:1/2:1/4:1/10:1
Tool material cast aluminum cast aluminum

MedMix MixPac DM2X 400 Cartridge Dispenser Works With:

  • MedMix MixPac C System Cartridges
  • MedMix MixPac F System Cartridges

Features of the MedMix MixPac DM2X 400 Cartridge Dispenser

  • Safe and easy handling
  • Easy fatigue-free operation
  • No cross-mixing
  • Rigid construction Precise dosing – accurate application
  • Suitable for high-viscosity compounds
  • High long-term stability

Compatible with all standard mix ratios

  • Optimal dispenser for each standard 2-component ratio (1:1, 2:1, 4:1, 10:1)
