MedMix MixPac (Sulzer) 200ml Empty 2:1 ratio 2-Part Empty Cartridges & Starter Kits (AJ 200-02-10-01)

MedMix MixPac (Sulzer)

SKU: SULZER_J_20021_CRTG_ONLY_005PK

  • $ 24.99
    (We can use your FedEx/UPS acct: Type-in the needed Acct # & Service Level)
    Will not ship until


    MedMix MixPac (Sulzer) 200ml Empty 2:1 ratio 2-Part Empty Cartridges & Starter Kits (AJ 200-02-10-01 )

    Adhesive Cartridges and Starter Kits for 2:1 ratio adhesives, which includes all components needed to properly dispense material: 450ml universal Dispenser, mixing Nozzles, resealable caps and Sealing Pistons. Each Kit includes one Dispenser, and either 1, 5, 10, 25, 50, or 100 Cartridges with the related mixing Nozzles, caps and Sealing Pistons. Perfect for storing and applying bulk adhesives that use a 1:1 mix ratio, where precise metering and mixing is needed.

    Made in USA

    This cartridge is a substitute for:

    MedMix MixPac (Sulzer) Cartridge Part Number: AC 200-02-10-01 (#112699)

    Available in two kit options, plus related accessories:

    • Empty Cartridges and Pistons
    • Starter Kits with Cartridges, Pistons, Mixing Nozzles, and Dispenser
    • Useful Accessories

     About the Cartridges:

    These cartridges include matching air-free (advanced diaphragm design) pistons and a re-sealable cap. They are ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free.  The cartridge design/fit using either the "C-System" or the "J-System" Industrial, Commercial & Construction style, and are manufactured by Sulzer MixPac, the industry leader in 2-part fluid packaging and dispensing.

    Rated up to 100psi sustained pressure.  The Cartridge design/fit using the industrial and construction standard "J-System" template.  The 2-Part design keeps the two adhesive parts separate, until a separate mixing Nozzle is attached, where the two parts are pushed or extruded into the mixing Nozzle and bonding or curing begins.

    Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.

    These cartridges are perfect for storing and applying bulk adhesives that use a 1:1 mix ratio, where precise metering and mixing is needed.

    About the Starter Kits:

    Each Starter Kit includes either 5, 10, 25, 50, or 100 cartridges, related sealing pistons and cartridge caps, mixing nozzles (one nozzle for each cartridge in your kit), and either one Dripless DC600 dispenser.

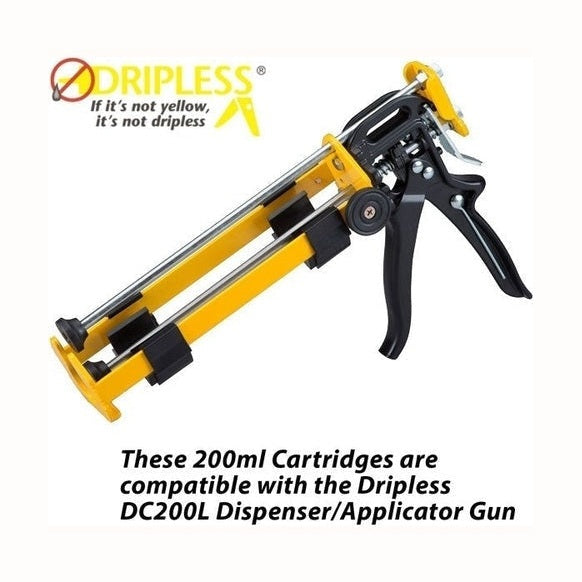

    We recommend checking out our Starter Kits to get set up and running.  Or if you prefer getting the dispenser separately, check out the Dripless DC600 Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.

    Total Cartridge Length (bottom to cap tip

    7.5 inches

    Barrel length

    5 13/16 inches

    Total cartridge width (across both barrels)

    3  inches

    Large Barrel Inner Diameter 1.53 inches

    Small Barrel Inner Diameter

    1.07 inches

    Mixer Style

    Bell Style or Integrated-Nut Style, and either Helix or Quadro/Square styles will work.

    Total Cartridge Volume (both barrels combined)

     2:1 ratio 200ml , or 6.7oz total (133.33ml x 66.67ml)   (4.467oz x 2.233oz)



    NOTE:  Additional accessories needed.  Consider the pre-configured starter kits, or view the accessories scroll-bar below to ensure you get what you need.  For example, with these empty cartridges you will also need mixing nozzles and a dispensing product to push/extrude/dispense the adhesive out.  We recommend also getting one of our 600ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.  The mixing nozzles needed are of the "Bell" or “Integrated Nut” design, which easily twist on and off the cartridge end.  These nozzles tend to be difficult to clean and store after their first use, and therefore generally considered to be single-use accessories.  These Cartridges use standard static mixer nozzles. Cartridges immediately available in mix ratio's 1:1 or 2:1.  Mix ratios of 4:1 and 10:1 can be ordered but on a special-order basis due to infrequent market demand. Products are industrial grade safe to 100 psi and are certified silicone free. Dispensers are available for all size cartridges either in manual of pneumatic.  Cartridge systems are available in a variety of volumetric ratios. Please be sure to select the correct ratio for your two component system.



    ×
