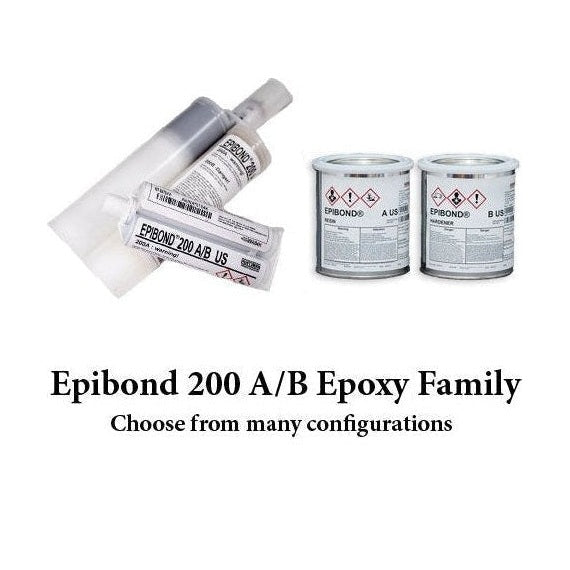

Huntsman Epibond 200 AB Aerospace Flexible High-Strength Thixotropic Gray Gel Epoxy
Epibond 200 A/B is an Aerospace-grade Flexible High-Strength Thixotropic Thic Gray Epoxy Gel adhesive. It is an advanced material that offers a service temperature from -67 to 200 degrees Farenheit, and provides high peel and shear strength. It has good retention of strength after environmental aging and it has no SVHC as defined under REACH. The adhesive is well suited for bonding a wide variety of materials such as composites, metals and many other dissimilar substrates. High strength and flexibility of the material makes it well suited for aerospace and other demanding applications.
Epibond 200 AB is gray when mixed and cured. The specific gravity is 1.3 per ASTM D-891 and the viscosity at room temperature is a thixotropic paste per ASTM D-2196. Gel time of 100 gm of material at 25 degrees Celsius will be 100 to 105 minutes per test method ASTM D-2471. Mix ratio is 50 parts by weight of the resin to 50 parts by weight of the hardener. When using the recommended mix ratio under normal temperature conditions, Epibond 200 A/B will provide a working time of approximately 60 to 70 minutes.
Epibond 200 A/B can be spread with a spatula to the pretreated substrate joint. A layer of 0.004 to 0.012 inches thick is recommended to provide the maximum lap shear strength. Once the material is applied it needs to be clamped together. Even pressure throughout the joint will ensure optimum performance. Epibond 200 will take approximately 7 days at room temperature to fully cure.

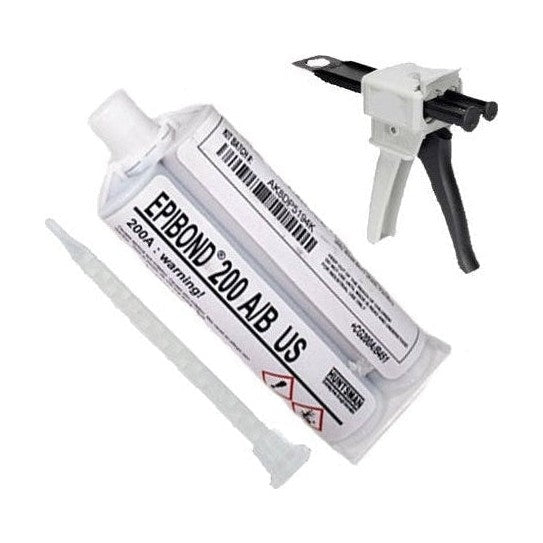

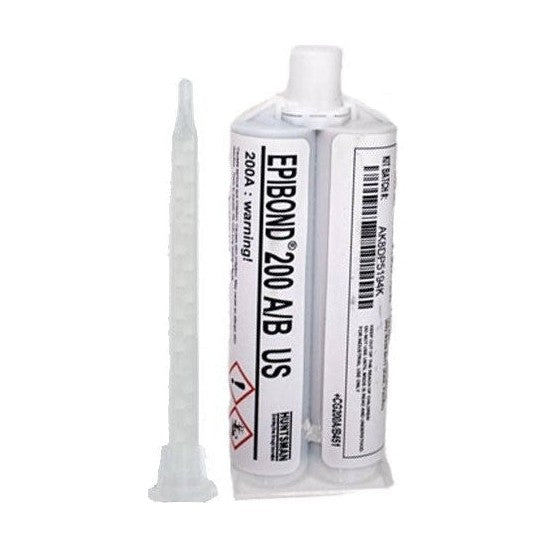

Please Note: These cartridges are designed to work best with a 50ml or 200ml cartridge Dispenser, respectively. We advise you use a 50ml or 200ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

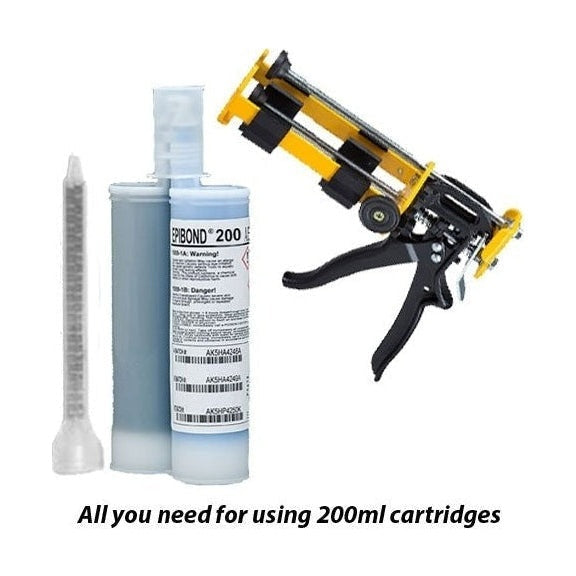

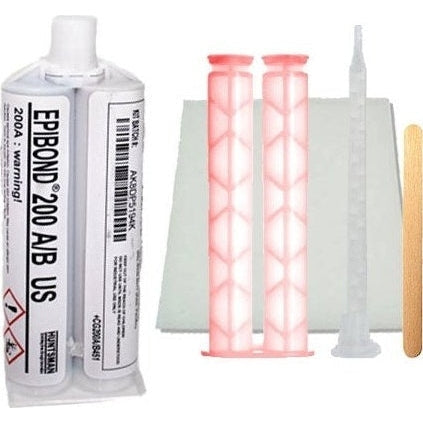

If you prefer not to use a Dispenser, all 50ml cartridge orders we sell will come with one manual hand plunger, as pictured, that you can use for fast small jobs. But the 200ml cartridges really need to use a 200ml Dispenser, they're just too big to easily use without the dispenser.
- 60 Min Working Time
- Flexible Epoxy Gel
- Thixotropic Gap Filling
- High Shear and Peal Strength
- Bonds to wide variety of materials
|Item Weight||Varies by packaging|

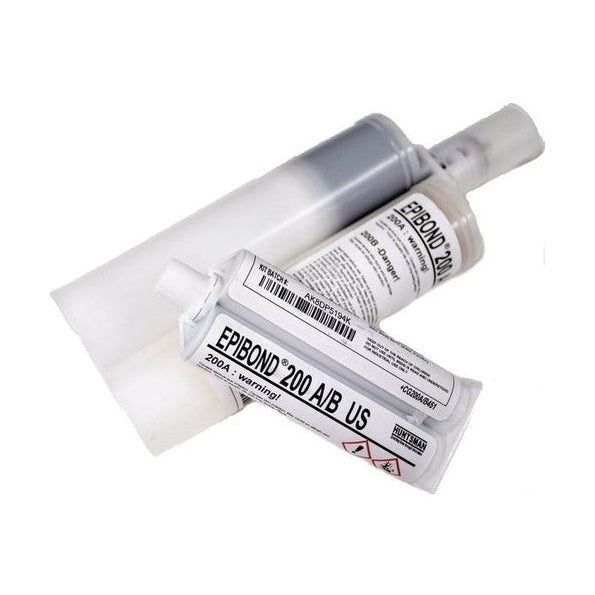

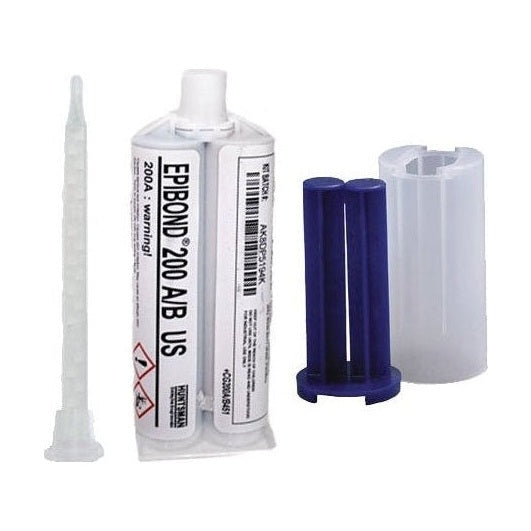

50ml Cartridges: 6 x 2 x 1 inches

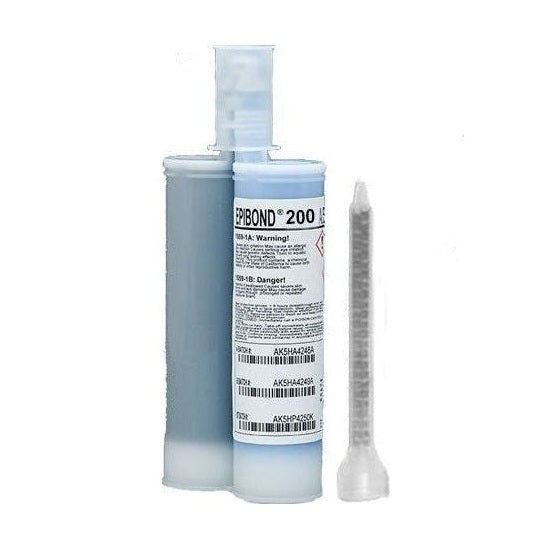

200ml Cartridges: 9 x 4 x 2 inches

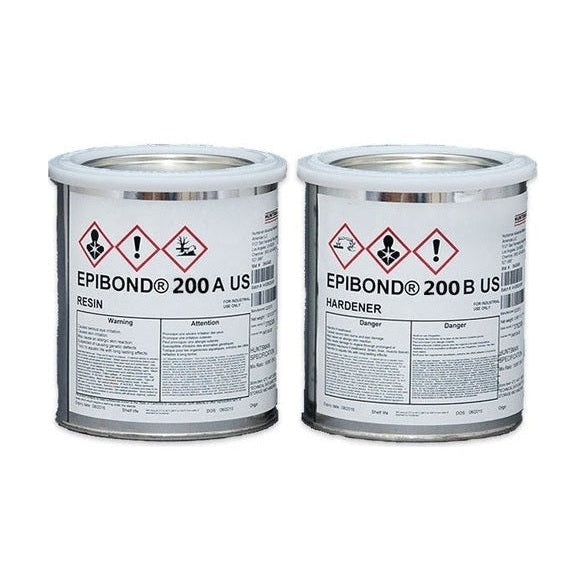

2-Gallon Kit: One Gallon of Part A and One Gallon of Part B
|Origin||Made in USA|
|Item model number||Epibond 200|
|Item Package Quantity||1|
|Number Of Pieces||1|
|Max PSI Strength||3280 PSI|
|Special Features||Impact Ready|
|Included Components||Quick Connect Fixtures|
