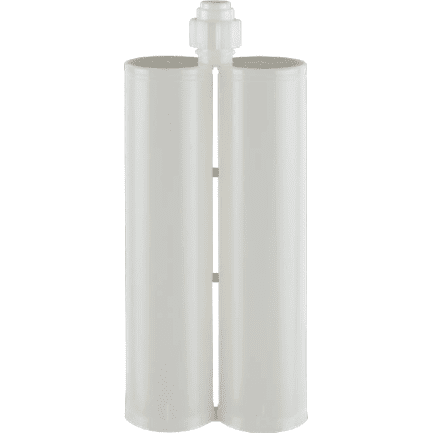

Ritter 400ml 1:1 Ratio (13.2oz) 2-Part (dual-component) 1:1 ratio 400ml empty Adhesive Cartridge, with included Resealable Cap and Sealing Pistons. These cartridges are in the style of the universal C-System, and fit all compatible/standard C-System nozzles and accessories, and dispensers.
Compatible as a back-up or substitute for
Sulzer MedMix Part Numbers:
AC 400-01-10-0 (#103721)
AJ 400-01-10-01 (103721)
Nordson EFD Cartridge Part Number:
(CK400SS-02) #7703013
About the Cartridges:

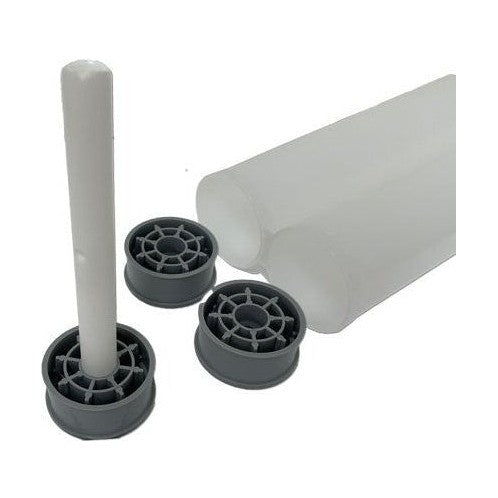

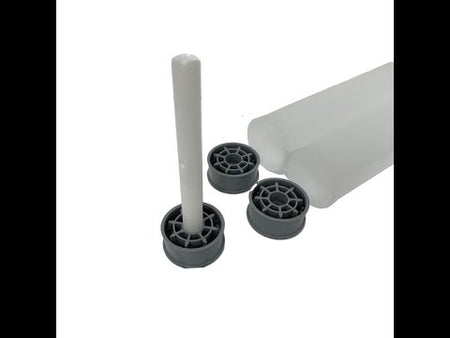

These cartridges include matching pistons and a re-sealable tip (or cap). They are ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free. The cartridge design/fit using the "C-System", and are manufactured by Ritter, a major industry leader in 2-part fluid packaging and dispensing.
These 2-Part Cartridges are industrial grade, silicone free, and rated up to 100psi sustained pressure. The Cartridge design/fit using the industrial standard "C-System" template. The 2-Part design keeps the two adhesive parts separate, until a separate mixing Nozzle is attached, where the two parts are pushed or extruded into the mixing Nozzle and bonding or curing begins.
The 2-Part design keeps the two adhesive parts separate, until a separate mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.
Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.
These cartridges are perfect for storing and applying bulk adhesives that use a 2:1 mix ratio, where precise metering and mixing is needed.
Tech Specs:
| Reference | 16055-0001 | 16055-0010 |
| Volume | 400 ml | 400 ml |
| Material | PP | PP |
| Printable | no | no |
| Design piston | valve | superior |
| Length | 185,5 mm | 185,5 mm |
| Ø A-tube : Ø B-tube | 40,3:40,3 mm | 40,3:40,3 mm |
| Mixing ratio | 1:1 | 1:1 |
