Maven Series 160 Wide Mixing Nozzle for thick material - variety of sizes and lengths

In stock
Part Number
Multi-Pack Size
Regular price $7.00 AUD inc. VAT
Currently Out of Stock Place Order and Call for ETA

Product details

  • Type Mixing Nozzles
  • Vendor Maven
  • SKU MAVEN_160MIXER_7700873_18ELE_7IN_TAPER_001PK

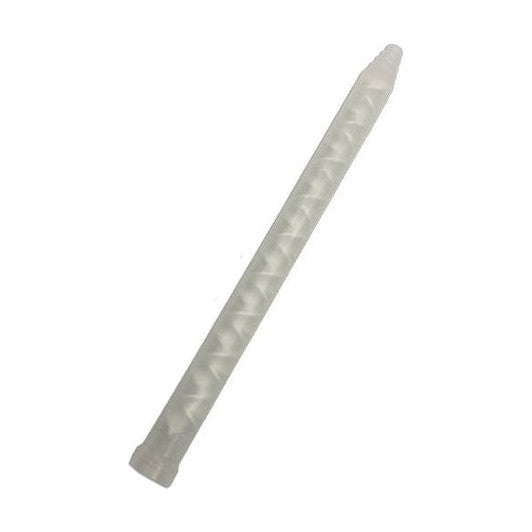

Maven 160 Series Wide Diameter Mixing Nozzle for Thick and High-Viscosity 2-part Gel & Paste materials. These are Universal mixing nozzles / tips for all standard C-System 200ml, 400ml, 600ml and 1500ml 2-Part epoxy and adhesive cartridges in all ratios (1:1, 2:1, 4:1 and 10:1).

Use these mixers with: Epoxy, Silicone, Urethane, Foam Urethane, Acrylic, Polyesters, and generally all Thick materaial like Gels, Pastes, and non-flowing ones.

Direct back-up / substitute for the Nordson 160 Series mixing nozzles.

Simply a back-up or secondary-spec nozzle that can be procured when the Nordson materials are out of stock.

Part Numbers & Features:

Part Number Nozzle Tip (Outlet) ID - Inner Diameter (Nozzle Width) Element Count (# of Mixes) Nozzle Length
7700873 Stepped 0.31in ID (8.0mm) 18 6.9in
7700876 Stepped 0.31in ID (8.0mm) 24 8.8in
7700879 Stepped 0.31in ID (8.0mm) 32 11.4in
7700941 Stepped 0.31in ID (8.0mm) 60 22.4in
7700942 Stepped 0.31in ID (8.0mm) 64 24in
7700990 Stepped 0.49in ID (12.7mm) 12 6.7in
7701001 Stepped 0.49in ID (12.7mm) 18 9.1in
7701010 Stepped 0.49in ID (12.7mm) 24 11.7in
7701028 Stepped 0.49in ID (12.7mm) 30 14.1in
7701038 Stepped 0.49in ID (12.7mm) 36 16.6in

    Two Standard Outlet Styles:

    • Stepped Tip (discret widths that u can cut off to change outlet diameter)
    • Slip Luer (tension-fit push-on Luer-Lok tip)
    • Luer-Lok (proper luer-lok screw lock fitting)

    The 160 series mixing nozzles have a bell inlet (which is the universal style) which fits all C-system / standard style larger volume cartridges (200ml and larger) that merge the A and B materials directly into the mixer. Cleanup simply involves removing the mixer and wiping the manifold face clean. In the case of the cartridges, because of the divider fin, simply remove the mixer. A one-piece Metal Housing/Jacket is recommended if working pressure inside the nozzle exceeds 150 psi (10 bar) (only used with meter mix valves or manifolds).

    Works perfectly with the following Brands of larger (C-System) adhesive cartridges: Loctite EA , 3M Scotch Weld, Devcon, Plexus, Huntsman, Araldite, Lord, MG Chemicals, Permabond, Masterbond, and all other brands that use the following 200ml, 400ml, 600ml, 1500ml, and related cartridge types. Works with all standard C-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly
