STATIC MIXERS WITH X-GRID™ TECHNOLOGY
MIXPAC Statomix MP series provides excellent performance for difficult to mix materials by using the X-Grid technology.
- Designed especially for 2-component products which have high viscosity ratios
- Optimal for mixing materials filled with particles, e.g., heat-conducting paste
- X-Grid Tech reduces nozzle length.
- Up to 3 times shorter than helical mixers with same mixing performance
- Reduced wasted material... less material loss
- Avoids unmixed zones near the housing
- Standard Bell Inlet (most often used style) for compatability with all standard machines and housings.
- Stepped tip outlet, allowing for fast and easy outlet diameter adjustments

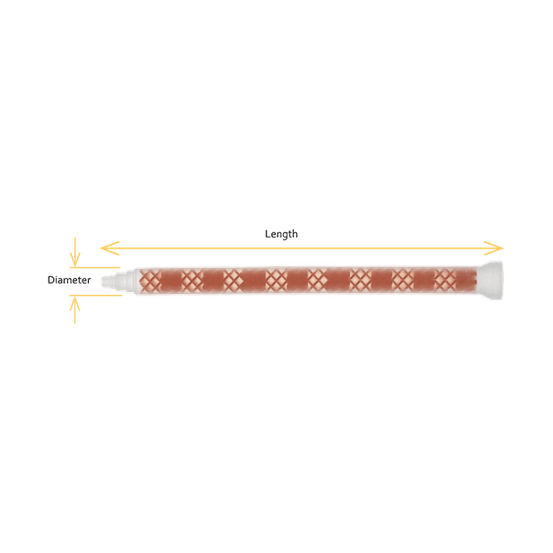

| Part ID | Part Number (Article, SKU) | Mixing Element Count | Inner Dia (mm) | Nozzle Lgth (mm) | Waste Vol (mL) | Inlet Type | Outlet Tip | Element Color | Element Material |
| 167879 | MPP 9-20T-01 | 20 | 12.5 | 235 | 12.5 | Bell | Stepped | Orange / White | PP |
| 168026 | MPP 9-20T-02 | 20 | 12.5 | 235 | 12.5 | Bell | Stepped | Black | PA |
| 167832 | MPH 12-8T | 8 | 14.7 | 118 | 9.5 | Bell | Stepped | Orange | PP |
| 167833 | MPH 12-12T | 12 | 14.7 | 161 | 12.8 | Bell | Stepped | Orange | PP |
| 167834 | MPH 12-16T-01* | 16 | 14.7 | 201 | 15.8 | Bell | Stepped | Orange | PP |
| 167859 | MPH 12-16T-02 | 16 | 14.7 | 201 | 15.8 | Bell | Stepped | Green | PA |
| 167871 | MPF 10-6T | 6 | 14.7 | 115 | 8.9 | Bell | Stepped | Orange / White | PP |
| 167872 | MPF 10-9T | 9 | 14.7 | 155 | 11.5 | Bell | Stepped | Orange | PP |
| 167873 | MPF 10-12T | 12 | 14.7 | 182 | 14 | Bell | Stepped | Orange / White | PP |
| 167874 | MPF 21-9T-01* | 9 | 29.3 | 305 | 97.5 | Flange | Stepped | Orange / White | PP |
| 167875 | MPF 21-12T | 12 | 29.3 | 385 | 123.6 | Flange | Stepped | Orange / White | PP |
| 167876 | MPF 21-15T-01* | 15 | 29.3 | 465 | 149.6 | Flange | Stepped & Threaded | Orange / White | PP |
